    Products

      Combo Tester line

COMBO TESTER Z124
       OPTIONAL:   Stand Z124S /   Footplate  Z124F   /   Wall station Z124W

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly.

In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and Footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.

This COMBO TESTER is a combination Wriststrap & DUAL  footwear tester which checks these parameters under actual realtime operating conditions. The footwear section gives a warning if either of the Footwear is defective.

download



COMBO TESTER Z134 + STAND Z134S
(with access control)

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wriststrap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly.

The maximum wrist strap resistance should not be more than 10 meg ohms and Footwear resistance should not be more than 35 Mega ohms. Also the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous voltages.

This COMBO TESTER is a combination Wriststrap & DUAL  footwear tester which checks these parameters under actual realtime operating conditions. The footwear section gives a warning if either of the Footwear is defective.

Door Access System:
Before entering the EPA  (ESD Protected Area) personnel need to test their Wrist Strap/ESD footwear. Access into the EPA is allowed by the release of the Electromagnetic lock only if  the resistance of the Wrist Strap/ESD footwear is within the Pass limits.

line Combo Tester
common ground line



COMMON   GROUND   POINT        Z111

As per ANSI/ESD S20:20 all conductors including Personnel must be electrically connected and attached to a known ground.

A common question about anti-static wrist straps is how and where to ground them. Anti-static work station operators need a convenient method of grounding their wrist straps where the ground cord won’t get in the way of their work. This convenient device  provides the means to ground anti-static wrist straps at your work station.

The strong bracket mounts (with just 2 screws) to the bottom front edge of your work table or bench. Two banana sockets located in the front of the bracket allow for easy connection of two wrist strap cords (for operators working side by side).

Features

  • Designed to mount under bench, saving work surface space
  • banana jacks allow for grounding two anti-static wrist straps at once
  • Lug for attachment to earth ground
  • Front edge bench mounting of ground block via two screw slots

download





ELECTROSTATIC   ALARM - Z201

The  Electrostatic Alarm Z201 is a portable, battery-operated instrument, incorporating the latest technology, to indicate the presence of approaching static electricity. It is designed to provide a quick and convenient method of locating static charges and their approximate charge levels. It is primarily intended for use in static-safe handling areas, as an early warning system to alert the personnel nearby.

The hazard may be in the form of personnel who are generating static or personnel who may be holding a charged object without observing the standard safety procedures for handling static sensitive devices.

The instrument incorporates a unique self-resetting feature and therefore requires no manual adjustments or zeroing. It can be kept 'ON' for continuous monitoring of critical static-safe areas, thanks to its remarkably low current drain of only 1 ma.

THEORY OF OPERATION
A static charge on any object produces an electric field whose strength is an inverse function of the distance from the charge. A given magnitude of charge always produces a given field strength at a given distance.

The unique sensor of the instrument actually responds to this electric field. However, more specifically, it senses only changes in the electric field, so to detect a charge there should be relative motion between the instrument and the charged body.

1

1        1
smoke absorber line


ESD Safe Smoke Absorber

Soldering smoke contains salicyclic acid, pinene and other noxious chemicals which are harmful to health when inhaled. Collophonium which is the residual part of distillate from tree resin has an irritating effect on the human respiratory system and so have other inorganic derivatives (chlorides). This causes nausia and headaches.  The long term effects can be more severe.  The gases released from the flux during soldering also severely irritate the eyes and often lead to eye diseases.  Soldering fumes are now recognised as a serious health hazard in the electronic industry.

The model 493 is a compact, portable, self-standing, low noise unit which can be adjusted to any angle for maximum smoke absorption and is specially designed to suck the harmful fumes away from the operator which then gets absorbed onto an activated carbon filter.





HUMAN  BODY  VOLTAGE  CHECKER    Z2055 & Z2055A

This instrument is designed to measure the Static Voltages carried on a human body.  It is a good auditing tool to verify whether Personnel entering an ESD safe area are carrying any hazardous charges on themselves. It can also serve to verify whether all the ESD protection measures which have been taken to make a particular area ESD safe are effective. By such measures we mean conductive flooring,  antistatic table mats, wrist straps, static sheilding bags, ionizing equipment, conductive containers and bins etc.

It is very simple to use and only requires the personnel under test to touch the Button on the instrument and directly read the charge level in volts on the meter.

The Z2055A version gives a hazard warning if Voltage measured exceeds 100V

1

1        Body Voltage Checker
bar type static eliminator line


STATIC ELIMINATOR - BAR TYPE SHOCKLESS Z2075

Introduction
The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and processes.  For example, static charges can lead to sticking and crumpling of polyester films while being processed on the machines. Collection of dust and other particulate contaminants on surfaces due to static is another example. The discharge bars and the power supply are used primarily in cases where disruptive static charges on fast moving material webs impair production processes and need to be eliminated.

How it works
This static eliminator works on the principle of high voltage corona discharge, to produce the neutralising ions. This Static eliminator system is designed to neutralize the charges by the “Ion showering” process wherein the surface charges present are neutralised. It is designed for continuous use and the unique “Shockless bars” ensure total safety even if the electrodes are accidently touched.

Application areas
Plastic film and paper industries, Glass related industries
Textile Industries, Pharmaceutical industry, Clean rooms.

Note: Not to be used near flammable gases, vapours or materials.

download

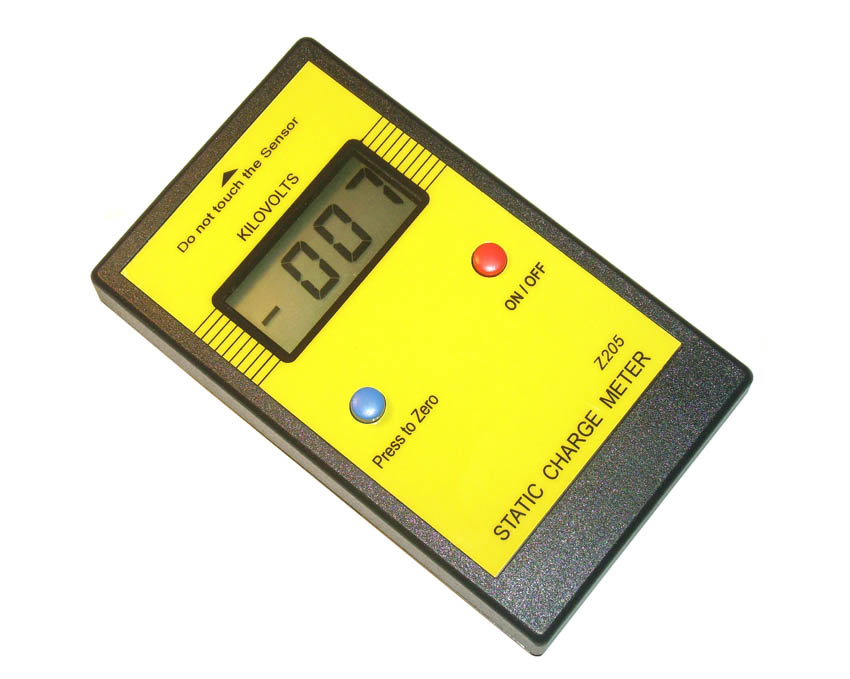

STATIC  CHARGE  METER (DIGITAL) Z205

The Static Charge Meter Z205 is a non-contact, light weight digital instrument designed to measure static voltages on objects & surfaces. It features a large LCD display to indicate the magnitude and polarity of the electrostatic charge directly in Kilovolts.

The special circuitry enables repeated and drift-free measurements without continual re-zeroing. The instrument has good directional sensitivity and is ideal for measuring electric charges encountered in critical electronic assembly and storage areas as well as Antistatic Work Stations. It can also be used for Plastics, Paper, Textiles, Food, explosives and Pharmaceutical Industries.

The unit gives direct readings of electrostatic potentials on any surface, when held at a distance of 5 cms. However, higher electrostatic potentials can be measured by proportionately increasing the distance from the meter to the charged object.

The use of very low current circuitry results in a long battery life of over 6 months under normal use.

1

1               static charge meter
static eliminator line



OVERHEAD  STATIC  ELIMINATOR  (IONIZER) Z209

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries, work areas & laboratories. For instance, static charges can cause havoc in the electronic assembly shopfloor.

This OVERHEAD unit can be conveniently hung over the work area for a large coverage to neutralise the charges on personnel or on any item entering an ESD sensitive area. This is achieved with a stream of ionized air. "Ion showering" is the only effective method of removing static charges from non-conductive objects and surfaces.

The unique high-efficiency pulse circuitry provides fast discharge with limited air flow.  It works on the principle of high-voltage corona discharge to produce the neutralising ions.

Ion Balance is maintained irrespective of supply voltage and even if the discharge electrodes are dirty. Balanced output is essential when used in critical ESD sensitive areas.

APPLICATION  AREAS
ESD sensitive  work areas and assembly units.
Plastic  and paper industries
IT & Computer industry
Clean rooms.
1



STATIC  ELIMINATOR  (IONIZER) Z207

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and laboratories. For instance, static charges can create havoc with sensitive equipment and electronic components.

This Bench Top instrument is designed to neutralise your ESD work-station or ESD protected area with a stream of ionized air. It does what Wrist straps and Conductive mats cannot do - i.e. remove static charges from non-conductive objects and surfaces.

It is able to rapidly neutralise potentially dangerous charges in a localised area.  An axial fan gives the desired air flow to neutralise static on specific objects rapidly, as well as control static in the general area in front of the ionizer.

This is a powerful, trouble free and compact solution to static control problems anywhere. The unique high efficiency ionization pulse circuitry provides fast discharge with minimum air flow. A high air flow would lead to operator discomfort and may also disturb small components.

This static eliminator works on the principle of high voltage corona discharge to produce the neutralising ions. It is designed for continuous use and a current limitor circuit ensures operator safety even if the ion emitters are accidentally touched.

The Z207 has special circuitry to ensure a balanced ion output. This ensures that no net charge is induced by the ion shower. Balance is maintained irrespective of supply voltage and even if the discharge electrodes are dirty. Balanced output is essential when used in ESD protected areas.

APPLICATION  AREAS
Anti-static work stations and assembly units.
Plastic film and paper industries
Plastic manufacturing and moulding units.
Pharmaceutical industry.
Clean rooms.

1

line                                    static eliminator
surface resistivity meter line



SURFACE  RESISTIVITY  METER  Z203

This is an ultra wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface.  In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications.  Moreover, these values are expected to fall within specified limits.  The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.

It also has unique additional feature of surface-to-ground measurement capability wherein the resistivity differential between any surface and any chosen ground can be determined.

The surface resistivity is conveniently indicated by a row of LEDs covering a total of 10 decades from 10^3 to 10^13 ohms/square.

download



SURFACE  RESISTIVITY  METER  Z203 - 100

This is a wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any surface.  In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications.  Moreover, these values are expected to fall within specified limits.  The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.

Surface Resistivity, Resistance between 2 points, and Surface to Ground can all be conveniently measured in accordance with EOS/ESD Association Std S4.1. Measurements in the conductive range i.e. upto 10^5 are made at 10V and all higher values at 100V. Measurements can be taken with built-in parallel electrodes or special external probes. A separate cord is also provided for Surface to ground measurements whereby the resistivity differential between any surface and any chosen ground can be determined.

The surface resistivity is conveniently indicated through an LED scale that is colour coded to signify conductive, dissipative and insulative covering a total of 12 decades from 10^3 to 10^12 ohms/square with under range and over range indications.

1

line       surface resistivity meter with probe
wrist strap and footwear tester line



WRIST STRAP  &  FOOTWEAR   TESTER  Z103
(optional: Wall Station Z103W & Footplate Z103F)

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly.

In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.

The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear system is safe to use.

ALSO AVAILABLE WITH FOOTWEAR RANGE UPTO 100M OHMS

download



WRIST STRAP  &  FOOTWEAR   TESTER  Z103 - 100
(optional: Wall Station Z103W & Footplate Z103F)

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/test footwear regularly.

In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 100 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.

The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear system is safe to use.

1

line    wrist strap
wrist strap tester line



WRIST  STRAP  TESTER  Z102

Wrist Straps are the first line of defence against  electrostatic charges build up on the human body. They are designed to carry away this change as soon as it is generated. At the same time the strap must remain electrically safe for the user. Thus, it is important to test every strap regularly.

In order to protect sensitive electronic components the maximum strap resistance should not be more than 10 meg ohms. On the other hand, the path to ground should have atleast 750 kiloohm resistance, as protection to the wearer from dangerous voltages and levels of current flow.

The wrist strap tester  checks  these  parameters  under  actual operating  conditions  with  the  strap  on  the wrist. It clearly indicates   whether  or  not the resistance of the strap system including the wearer falls within acceptable limits.

download



SURFACE  RESISTIVITY  METER  ZE203

This is a wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface.  In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications.  Moreover, these values are expected to fall within specified limits.  The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.

It also has unique additional feature of surface-to-ground measurement capability wherein the resistivity differential between any surface and any chosen ground can be determined.

The surface resistivity is conveniently indicated by a row of LEDs covering a total of 10 decades from 10^3 to 10^12 ohms/square.

APPLICATION  AREAS
Anti-static work stations and assembly units.
Plastic film and paper industries
Pharmaceutical industry.
Clean rooms.

1

line                     surface resistivity meter
wrist strap line



WRIST STRAP  &  FOOTWEAR TESTER  ZE103
(optional: Footplate Z103F & Wall Station Z103W)

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/test footwear regularly.

In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.

The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear is safe to use.

ALSO AVAILABLE WITH FOOTWEAR RANGE UPTO 100M OHMS

download



WRIST  STRAP  TESTER  ZE102

Wrist Straps are the first line of defence against  electrostatic charges build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the strap must remain electrically safe for the user. Thus, it is important to test every strap regularly.

In order to protect sensitive electronic components the maximum strap resistance should not be more than 10 meg ohms. On the other hand, the path to ground should have atleast 750 kiloohm resistance, as protection to the wearer from dangerous voltages and levels of current flow.

The wrist strap tester  checks  these  parameters  under  actual operating  conditions  with  the  strap  on  the wrist. It clearly indicates whether  or  not the resistance of the strap system including the wearer falls within acceptable limits.

1

line                     wrist strap
continuos workstation monitor line



CONTINUOUS WORKSTATION MONITOR Z107

The Model Z107 has independant circuitry designed to continuously monitor the connections to earth of the Wrist Strap and Work Surface.

WRIST STRAP
This section continuously monitors the wriststrap to detect loss of continuity between operator and monitor.  Conditions such as broken coil cords and improper contact with the skin are detected instantly to alert the operator before serious and expensive ESD damage can occur. As there is no resistive return path from the wriststrap, it uses the 'Capacitive AC principle' to check if the operator is adequately grounded. The Wrist Strap section is automatically activated when it is plugged in. Continuous monitoring reduces the need for periodic checks and audits and also ensures greater security.

WORK SURFACE (MAT)
The work surface is monitored by a DC Resistive loop  and a warning is given in case the Surface-to-Ground resistance exceeds the safe threshold value of 10 megohms.

download



ESD ACCESS CONTROL SYSTEM    Z2056A
                                Body Voltage Monitor

This instrument is designed to detect the level of Static Charges present on a human body and allow access into an ESD safe area provided the Body Static voltage is under 100V.

It is very simple to use and only requires the personnel to Press & Hold the Test Button on the instrument. If the Body voltage is under 100V, the Green PASS Led will light and the magnetic lock is deactivated for a few seconds thereby allowing access through a door or turnstile.

The personnel should normally be free of Static Voltage provided proper ESD protection measures have been taken.  Therefore, it also serves to verify whether the measures taken to make a particular area ESD safe are effective. By such measures we mean conductive flooring, ESD wrist straps & Footwear, ionizing equipment, etc.

1

line      ESD access control
static discharge line



STATIC DISCHARGE  STAND  Z103D

This is designed to safely drain away any static charges present on a Human body before entering an ESD safe area. A 1 megohm resistor is provided in the ground cord as precaution against risk of shock.

Ground the stand to a suitable ESD ground point by means of the cord.

Stand on the Base Plate while wearing the Conductive / Static Dissipative Footwear and also touch the top plate. Any static present on the body will get drained away.



download



STATIC  DISCHARGE  PALMPLATE  Z103P

The Grounding PALMPLATE is a convenient and quick solution to ensuring that there is no charge on the Human Body before entering any ESD safe area. It has a conductive Stainless Steel electrode plate mounted onto an acrylic backing.

The plate can be mounted on the wall at a convenient height and the personnel have to just touch the plate to drain any charge from the body.

The Plate is supplied with a Grounding cord which needs to be connected to any ESD earth point. A 2.2 megohm resistor is provided in the ground cord as precaution against risk of shock.

1

line static discharge
12v lineline



RESISTANCE - TO - GROUND  MONITOR  Z109

The grounding of ESD protective equipment is used to reduce the chance of damage to susceptible parts and assemblies resulting from ESD.  The first step in ensuring that everything is at the same  electrical potential is to ground all components to the same electrical ground point. This point is called the common point ground and is defined by ANSI EOS/ESD/S6.1 as a system or method for connecting two or more grounding conductors to the same electrical potential.

ANSI S6.1: Highly conductive work surfaces and ESD protective flooring should be connected directly to ground eliminating the resistor. For static dissipative work surfaces and ESD protective floor mats the resistors are optional.

The Model Z109 verifies that the bonding-to-ground of the ESD workstation is less 5 ohms. This unit continuously monitors and reports the integrity of point-to-ground connections on ESD workstations and other associated items. The 5 ohm threshold has been selected to accommodate long interconnecting cords used for Grounding.





download



12V  3A DC   SMPS  ADAPTOR

This is a Mains Driven Switch Mode Power Supply which delivers 12V at 3A steady state, and can handle a wide variation of Line Input Voltage.

The circuitry is protected against damage due to Output short-circuit and  overloads.



1

line 12v3a
12v line

12V  5A DC   SMPS  ADAPTOR

This is a Mains Driven Switch Mode Power Supply which delivers 12V at 5A steady state, and can handle a wide variation of Line Input Voltage.

The circuitry is protected against damage due to Output short-circuit and  overloads.



download

12 V   1A  DC   SMPS  ADAPTOR / BATTERY CHARGER

Also available  in Open-Frame version  without enclosure



1

line 12v
12v line

12V  10A DC   SMPS  POWER   SUPPLY/ Battery Charger



This is a Mains Driven Switch Mode Power Supply which delivers 12V at 10A steady state, and can handle a wide variation of Line Input Voltage.

The circuitry is protected against damage due to Output short-circuit and  overloads.

A Battery Charger Version is also available



download



12V  3A DC  SMPS POWER  SUPPLY with BATTERY CHARGER

This Power supply cum battery charger has been designed for use in applications, where an uninterrupted DC supply of 12Volts is required, for critical operations such as Security and Safety Panels, etc.

It has a Mains Driven Switch Mode Power Supply which delivers 12V at 3A steady state and 4A Peak, and can handle a wide variation of Line Input Voltage. Additionally, it has an auxiliary output for battery charging which is a Constant Voltage- Current Limited system.

Incase of Mains failure, the output is connected to the Battery. The Battery Voltage is monitored by additional circuitry, which prevents deep discharge of the Battery.

The Power Supply can also be safely operated without connecting a Battery, in case Battery backup is not required. The circuitry is protected against damage due to Battery Reversal, Output short-circuit, and  Dead Battery Charging.  An array of LEDs indicate the status of the system.

1

line


battery charger

ionizer line

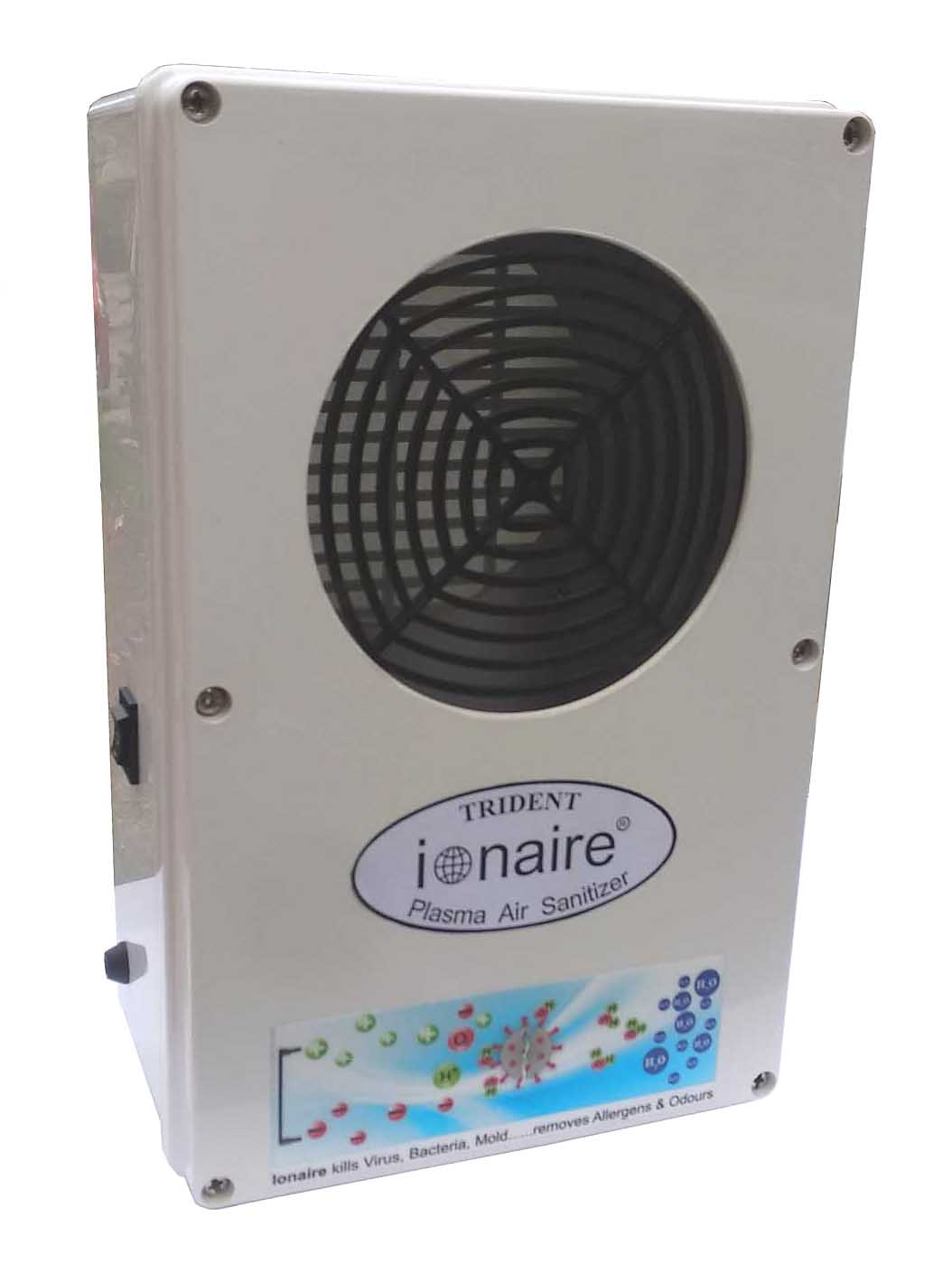

The IONAIRE  Models

The IONAIRE – PLUS featured alongside is suitable for rooms upto 250 sq ft

With a negative ion output 5 fold higher than Ionaire Plus, the TURBO  is designed to cover upto 500 sqft and also deal with high levels of  air  pollutants and particulates.

The Turbo is ideal for large commercial establishments, shops, pubs, restaurants, hospitals, clinics and laboratories.



download



P U R E Z O N E – P300
Electronic   De-odourizer   &   Sterilizer

Eliminate problem odours, stale air & indoor air pollution............. without  the use of  Chemicals

OZONE or "Activated Oxygen" is Nature's air purifier created by lightning. PUREZONE electronically recreates this cleansing power within any indoor environment and contaminants are removed from the air by oxidation.  Apart from being an excellent deodorant, ozone is also a powerful disinfectantAnd all this without leaving any harmful residues or the use of any chemicals.

It is also used in packaging of food items as a sterilising agent and for Hand sanitizing.

This handy portable unit employing 'cold plasma' technology has a blower to disperse the Ozone. It comes with a built-in timer to switch off the unit automatically after the set time.

THE   APPLICATIONS  ARE  ENDLESS..........
Homes Offices Apartments  Kitchens   Toilets   Food  &  Pharmaceuticals   Hospitals & Nursing Homes Veterinary Clinics Day Care Centers   Hotel Rooms   Restaurants Bars & Pubs  Conference Rooms  Chemical Environments  Laboratories   Paintshops  Beauty  Parlors   Fire restoration ...........in short, any place where there is a problem of odours or air pollution.

Ozone neutralises the following odour generating chemicals
Benzene: Paint, new carpets, new drapes, upholstery
Ammonia: Pet urine, tobacco smoke, cleaning supplies
Chloroform: Paint, new drapes, upholstery, new carpeting
Formaldehyde: Tobacco smoke, plywood, cabinets, furniture
Benzopyrene: Tobacco smoke
Hydro-Carbons: Tobacco smoke, gas burners, furnaces
Trichloro-Ethylene: Paints, glues, furniture, wallpaper
Carbon Tetra-Chloride: Paint, new drapes, new carpets, cleaning

1

line pure zone 500
gsr line



GSR (Bio Feedback) Stress Monitor  Z901

A simple, natural way to calm down,   de-stress and relax… without drugs or any external means

Stress is a part of everyday life, and it keeps many people from functioning at their optimum level because they do not know how stressed they are or how to control it. Biofeedback is a widely used and medically accepted technique for teaching control of stress.

This compact, hand-held Biofeedback device lets you monitor and control your stress by translating minute tension-related changes in your skin into sound. By concentrating  on  the tone you can learn to lower the pitch and thereby your stress and anxiety level.

This drug-free, non-invasive stress relief method has been successfully used in practice by physicians, psychologists, psychiatrists and meditation experts for more than three decades.

Apart from general relaxation, biofeedback has proven effective in the treatment of anxiety, hypertension,  incontinence,  and headaches, among other conditions.

Salient features

  • Switches on automatically when it senses finger contact
  • Detects anxiety and stress related changes by monitoring skin conductivity
  • Provides tonal feedback of stress level through in-built speaker or earphones
  • Sensitivity control to vary response of the instrument to changes in skin conductivity
  • Volume control for audio output
  • Long battery life of 50 – 100 hrs (cost: Rs.15) ,  compact and portable

download



LPG  LEAK  DETECTOR  - MODEL Z-12

LPG  leak detector model Z-12 is a compact electronic device which detects the presence of LPG or LNG in the air. It switches on a relay at 1/10th of LEL (Lower Explosive Level) thereby warning much before the escaped gas can pose a fire hazard. There is also a visual warning LED.

This model operates on 12V DC supply and has been specifically designed for use with Security panels as well as in LPG/LNG run vehicles.

SENSITIVITY :
The unit is factory set for 2000 - 3000 PPM which is well below the Lower Explosive limit of LPG (18000 to 21000 PPM).  Whenever there is a gas leak and the Air + LPG mixture reaches the critical level the relay is put on. The relay contacts can inturn switch on an alarm or give a signal to the alarm panel. The sensing process takes less than 20 seconds. The relay and LED remain on,  as long as the gas concentration is more than 2000 PPM.

It does not require any compensation, alteration or resetting for different temperatures and humidity levels.
1

line lpg
lpg line



LPG  LEAK  DETECTOR  - MODEL 230V AC

LPG  leak detector model is a compact electronic device which detects the presence of LPG or LNG in the air. It switches on an alarm at less than 20% of LEL (Lower Explosive Level) thereby warning much before the escaped gas can pose a fire hazard. There is also a visual warning LED.

Calibration :
Since there are currently no Indian Standards for LPG detectors, we follow the "Japanese Test Standard for Gas Detectors" issued by the Japan Gas Appliances Inspection Association. Our detectors also satisfy the UL standard No.UL1484 for Residential Gas Detectors.

The unit is factory calibrated for sensitivity less than 2000 PPM which is well below the Lower Explosive limit of LPG (18000 to 21000 PPM).  Whenever there is a leak and the Air + LPG mixture concentration exceeds the set level an alarm is triggered.

It does not require compensation, alteration, resetting for different temperatures and humidity levels.

download



Transcranial Direct Current Stimulator  Z905

Transcranial Direct Current Stimulation (tDCS) is a brain stimulation technique that has been available for several decades; the procedure was earlier described as brain polarization. As presently practised, it involves the delivery of a very small direct current (about 1-3 mA) for a brief period (about 20 min) through appropriately-sized electrodes, one or both of which are placed upon the scalp.

Although tDCS has not been formally approved for any clinical indication, it has been experimentally used with some success in a variety of neuropsychiatric disorders ranging from depression to refractory auditory hallucinations in schizophrenia.  tDCS is very well tolerated.

The last decade has witnessed an explosion of research in the field, with nearly a thousand hits emerging from PubMed, alone.

1

line transcranial direct current simulator
line
zeebeetronics.com 2016-2017                                                                                                                                                                                                                                                                   facebook   twitter    youtube
