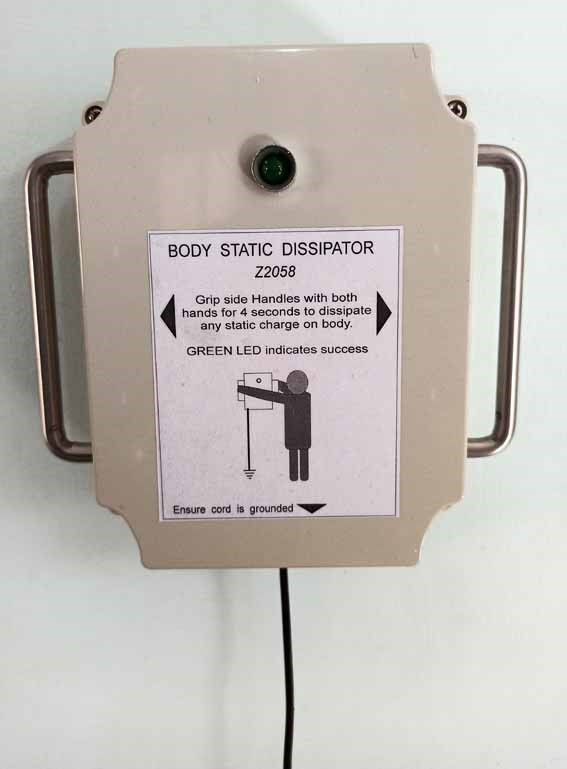

Body Static Dissipator Z2058 (LED Indicator)
Body Static Dissipator Z2058 (LED Indicator)
This device is designed to safely drain away any electrostatic charge which may be present on a Human body before entering a Static Sensitive or Hazardous area. It features confirmation by a Green LED.
Fix or hang the unit on the wall at any convenient location. The ABS body is IP65 rated. Ground the device to a suitable ESD ground point and grip the handles with both hands for about 4 seconds to safely neutralise static charges. Green LED confirms proper discharge.
Specifications
| Enclosure | ABS plastic |
|---|---|
| Ingress Protection | IP65 |
| Dimensions | 220 × 220 × 80 mm |
| Weight | 700 g |
| Mounting | Wall mounting |
| Test Grips | Stainless Steel handles |
| Power Supply | 9V battery |
| Indication | PASS — 10 mm Green LED |
| Decay Time | < 4 secs |
| Resistance to Ground | 10⁵ Ω for safety |
| Warranty | 12 months |
| Accuracy | ±10% of reading for RH < 65% |
