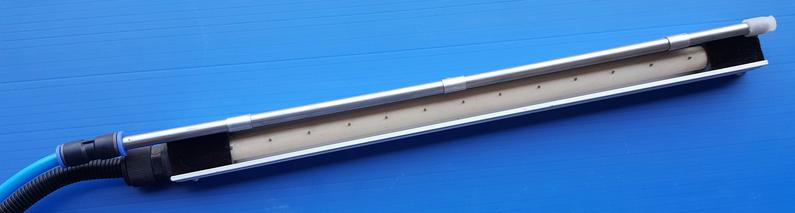

Ionizing Bar with Air Assist Z2079
Ionizing Bar with Air Assist Z2079
Air Assist provides ionization over longer and wider areas for efficient and effective elimination of static charges. Ionization is boosted by a compressed air system. The Air-Assist bar is designed to improve discharge performance at a longer range of distances by moving ions to the target with a precise airstream.
Application areas: Plastic film and paper industries, Glass related industries, Textile & silk industries, Pharmaceutical industry, Clean rooms.
Specifications
| Input Power | 230 VAC |
|---|---|
| Output Voltage | 5.5 KV, current limited to 5 mA for safety |
| Operating Distance | 2" to 9" (50–225 mm) from bar |
| Temperature | 0–55°C (Air Assist: 0–40°C) |
| Weight | 2 kg |
| Air Assist Gas | Clean, dry, oil-free compressed air or nitrogen; 2–5 bar |
