Surface Resistivity Meter Z2033 (Wide Range Digital)
Surface Resistivity Meter Z2033 (Wide Range Digital)
Wide range 10² – 10¹²·⁵ Ω with high resolution 0.1 decade decimal readings. Measures Surface Resistivity or Resistance between 2 points. Products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats etc. have resistance values which need to conform to stringent specifications.
Additional features include surface-to-ground measurement, ambient Temperature measurement and Data Hold function, all on a large backlit LCD display. Measurements can also be made using external probes.
Specifications
| Measurement Range | 10² to 10¹²·⁵ Ω/sq; 0–50°C |
|---|---|
| Resolution | 0.1 decade |
| Accuracy | Resistance ±10%; Temp ±2°C |
| Indication | LCD backlit display |
| Power Supply | 9V DC battery with Auto-off |
| Dimensions | 125 × 65 × 35 mm |
| Weight | 160 g |
| Accessories | 1 m Grounding Cord & Carrying case |

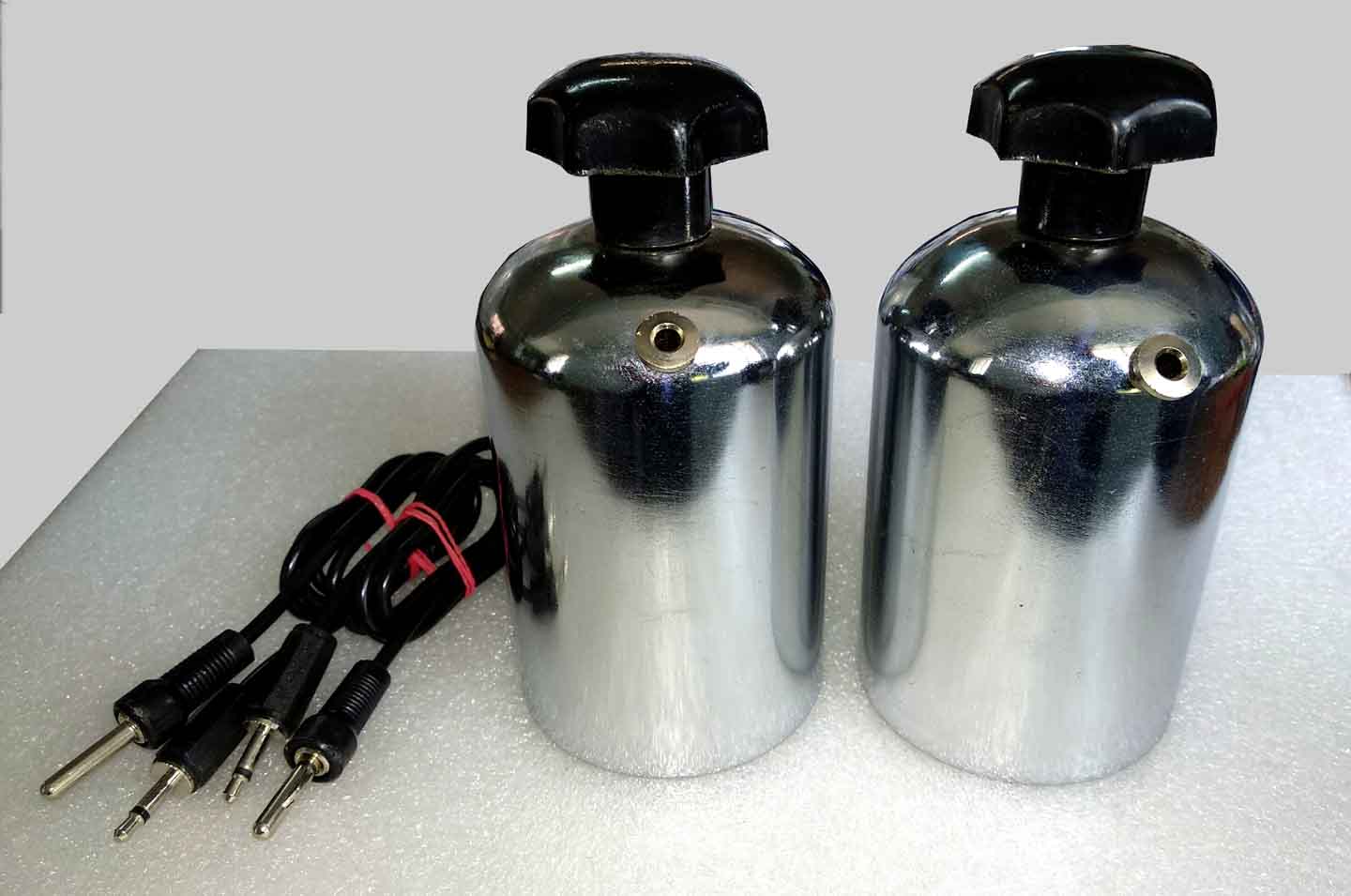

| Optional | External electrodes |
| Calibration | By embedded software, factory only |
| Warranty | 6 months (hardware like switches/connectors not covered) |
| Conformance | D257 |
