Wriststrap & Footwear Tester ZE103 with Stand Z103S
Wriststrap & Footwear Tester ZE103 with Stand Z103S

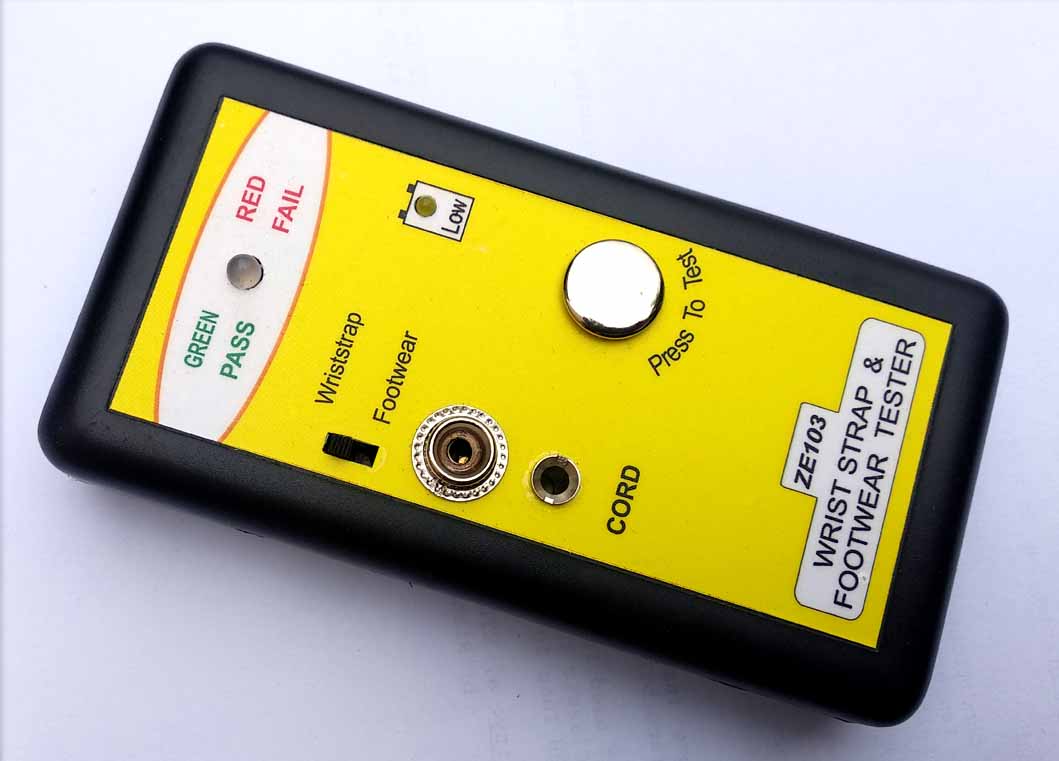

Wrist Straps are the first line of defence against electrostatic charge build up on the human body. This instrument is designed for fast, frequent testing of ESD wrist straps and Footwear. Very simple to operate — Green light signals OK; Red light and audible indicator means resistance is too low or too high.

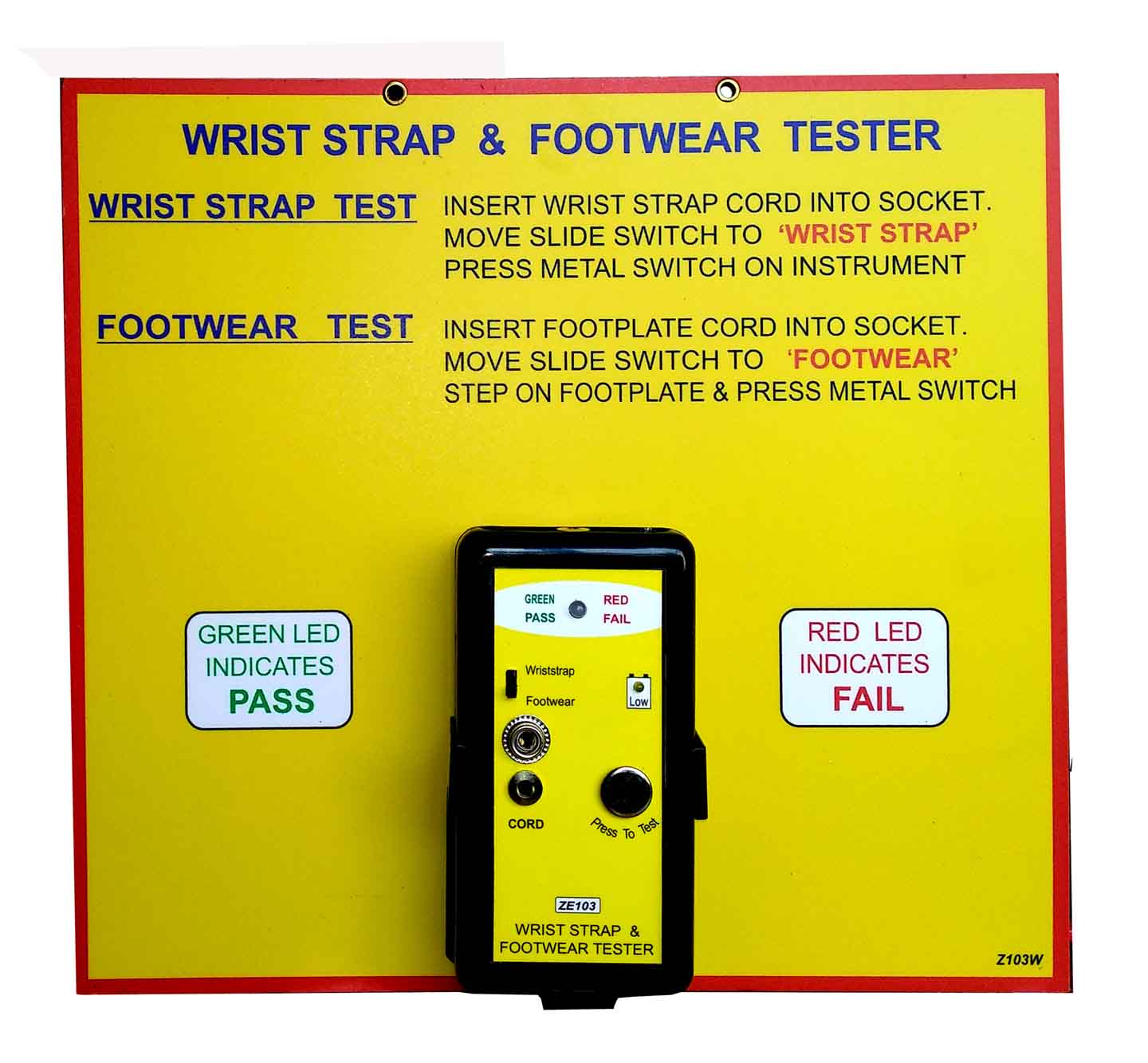

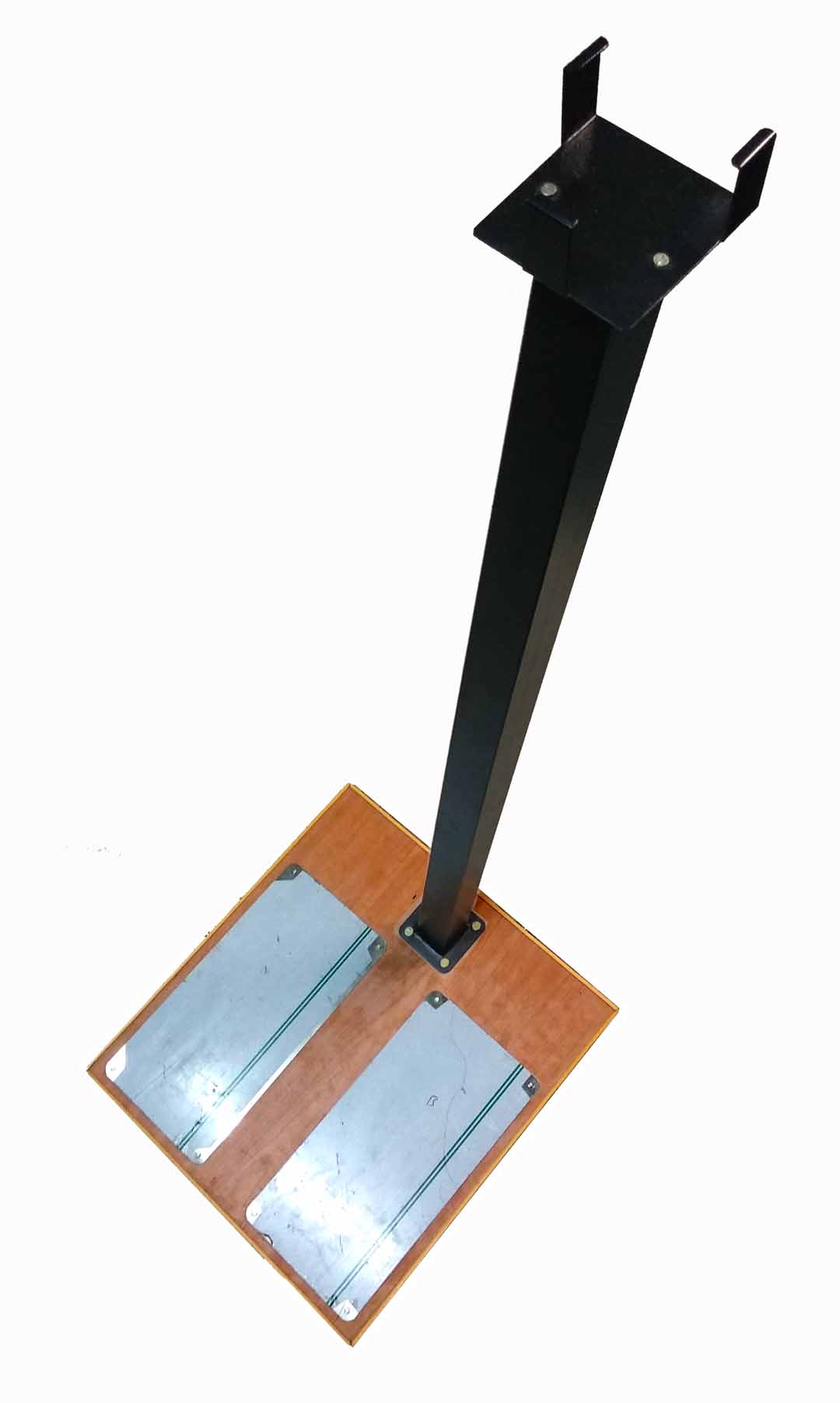

The special Test Stand which also holds the instrument makes it convenient for easy and quick testing of Wriststraps or ESD Footwear under actual operating conditions. System is designed to check Wriststraps & ESD footwear only.
Specifications
| Application | To check Wriststraps & ESD footwear only |
|---|---|
| Pass Range (Wrist Strap) | 0.75 to 10.0 MΩ |
| Pass Range (Footwear) | 0.75 to 35.0 MΩ |
| Indications | Pass — Green LED; Fail — Red LED; Audible Alarm |
| Accuracy | ±10% |
| Power Supply | 9V DC battery |
| Low Battery | Warning < 7V |
| Instrument Dimensions | 135 × 70 × 25 mm |
| Instrument Weight | 150 g |
| Stand Dimensions | 380 × 400 × 950 mm (H) |
| Stand Weight | 6 kg |
| Calibration | Recommended every 12 months |
| Warranty | 12 months except switches, connectors |
| Conformance | EN 100 015 |
