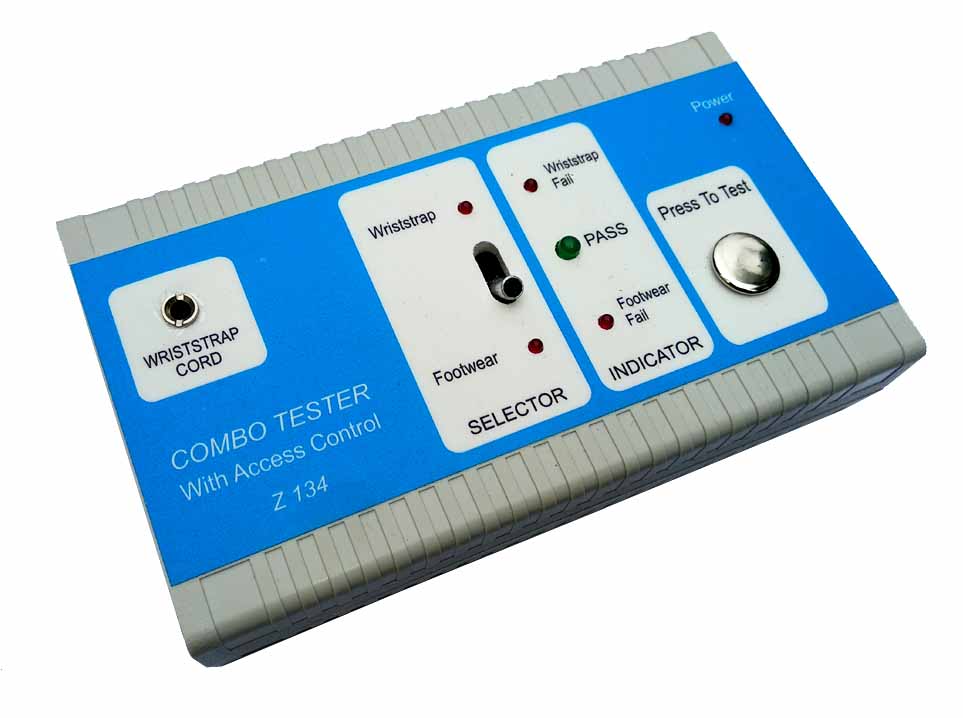

COMBO Tester Z134 (Turnstile or Door Access)
COMBO Tester Z134 (Turnstile or Door Access)
Wrist straps and ESD footwear are the first line of defense against electrostatic charge build-up on the human body. The wrist strap and footwear resistance should be within certain limits to ensure personnel safety and product protection.
This combination Wriststrap & DUAL Footwear tester checks these parameters under real-time operating conditions. The footwear section gives a warning if either footwear is defective.
Note: The system is designed to check wrist straps and ESD footwear only. It may give inconsistent results with regular footwear or bare feet.
Access Control Options
Before entering the EPA (ESD Protected Area), personnel test their wrist strap and ESD footwear. Access is granted only when the measured resistance is within the pass limits.
For a turnstile or flap barrier, the lock releases after a successful test. The turnstile or flap barrier is not supplied and must be procured separately. For door access, the unit can release an electromagnetic lock after a successful test.
Specifications
| Application | Wrist straps and ESD footwear only |
|---|---|
| Pass Range | Wrist strap: 0.75 to 10 MΩ Footwear: 0.75 to 35 MΩ |
| Actuation | Gently press the TEST button |
| Accuracy | ±10% |
| Power Supply | Included |
| Turnstile / Flap Barrier | Not supplied; procure separately |
| Door Access | Integrates with an electromagnetic lock |
| Tester Dimensions & Weight | 160 × 95 × 40 mm, 210 g |
| Dual Footplate Dimensions & Weight | 380 × 340 mm, 3 kg |
| Warranty | 12 months (excludes switches and connectors) |
| Calibration | Recommended every 12 months. Calibration services available from Zeebeetronics only. |
| Conformance | EN 100 015 |
