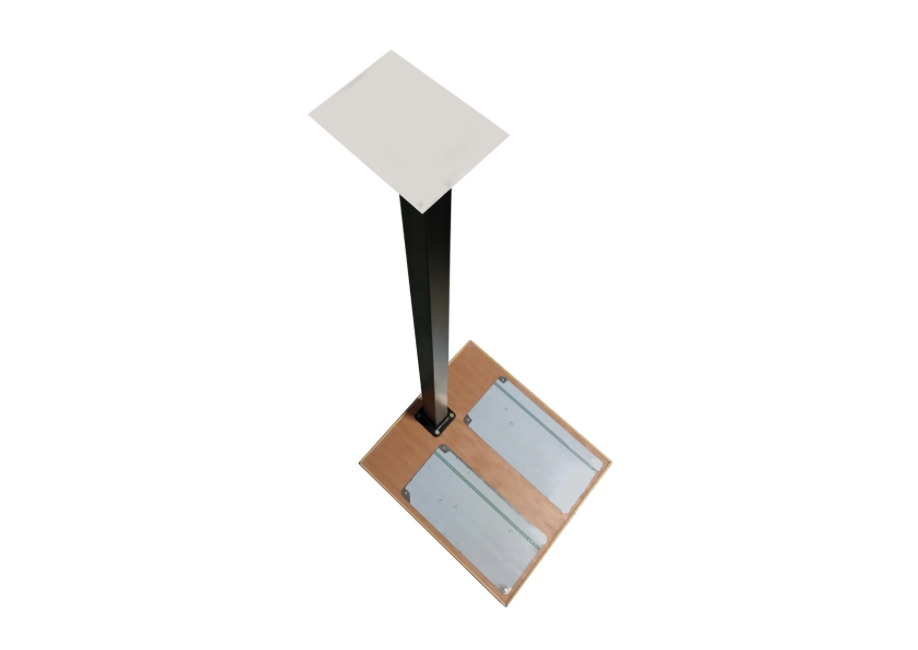

Static Discharge Stand Z103D
Static Discharge Stand Z103D
This is designed to safely drain away any static charges present on a Human body before entering an ESD safe area. A high value resistor is provided in the ground cord as precaution against risk of shock.
Ground the stand to a suitable ESD ground point. Stand on the Base Plate while wearing Conductive / Static Dissipative Footwear and also touch the top plate. Any static present on the body will be drained away.
Specifications
| Material | Stainless steel & MDF |
|---|---|
| Finish | Brushed effect |
| Footplate Dimensions | 380 × 400 × 20 mm |
| Touch Plate | 150 × 150 mm |
| Weight | 4.75 kg |
| Height | 950 mm |
| Decay Time | < 2 secs |
| Resistance to Ground | 1 MΩ |
