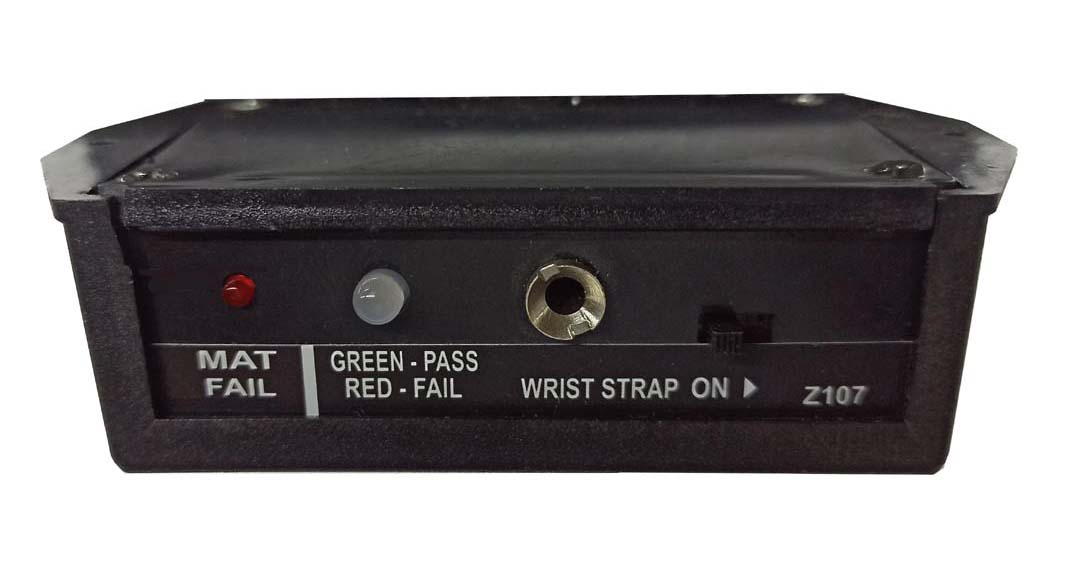

Continuous Workstation Monitor Z107
Continuous Workstation Monitor Z107
The Model Z107 has independent circuitry to continuously monitor the Wrist Strap and Work Surface. Continuous monitoring reduces the need for periodic checks and audits and ensures greater security.
The wriststrap section monitors for loss of continuity between operator and monitor. Broken coil cords and improper contact with the skin are detected instantly. The work surface section gives a warning if Surface-to-Ground resistance exceeds the safe value.
Specifications
| Pass Threshold (Wrist Strap) | Under 4 MΩ |
|---|---|
| Pass Threshold (Mat) | Under 10 MΩ |
| Indications | Pass — Green LED; Fail — Flashing Red (wrist strap), Steady Red (mat); Audible Alarm |
| Power Supply | 6V DC 100 mA |
| Dimensions | 110 × 60 × 32 mm |
| Weight | 75 g |
| Calibration | Recommended every 12 months |
| Warranty | 1 year except switches, connectors |
| Conformance | BS EN 100015–1 |
