Static Discharge Palmplate Z103PL (with Laser Marking)
Static Discharge Palmplate Z103PL (with Laser Marking)

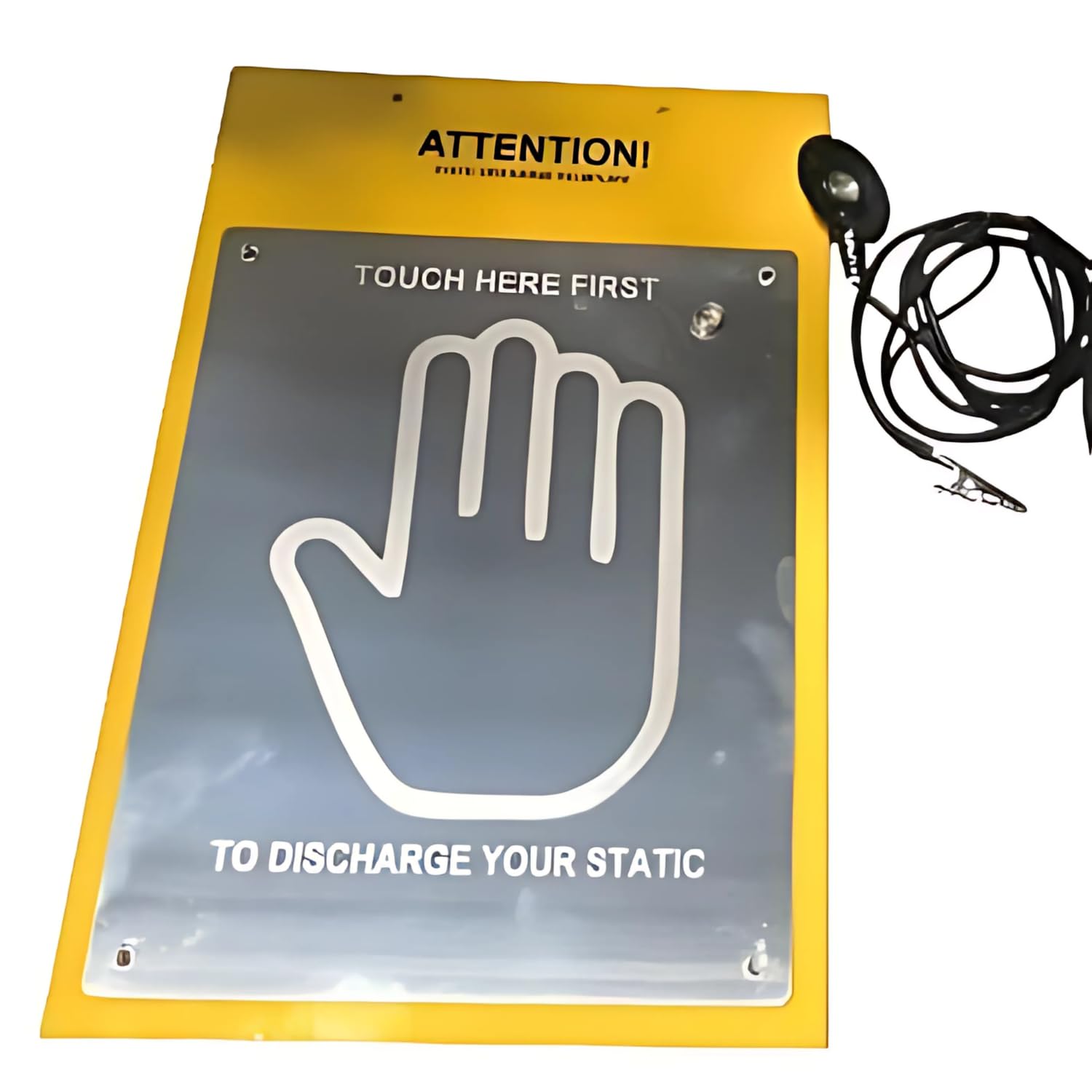

The Grounding PALMPLATE is a convenient and quick solution to ensuring that there is no charge on the Human Body before entering any ESD safe area. It has a conductive Stainless Steel electrode plate mounted onto an acrylic backing.
The plate can be mounted on the wall at a convenient height and personnel have to simply touch the plate to drain any charge from the body. A high value resistor is provided in the ground cord as precaution against risk of shock.
Specifications
| Material | Stainless steel on Acrylic backing |
|---|---|
| Finish | Brushed effect |
| Overall Dimensions | 330 × 250 mm |
| Touch Surface | 250 × 220 mm |
| Weight | 550 g |
| Decay Time | < 2 secs |
| Resistance to Ground | 2.2 MΩ |
