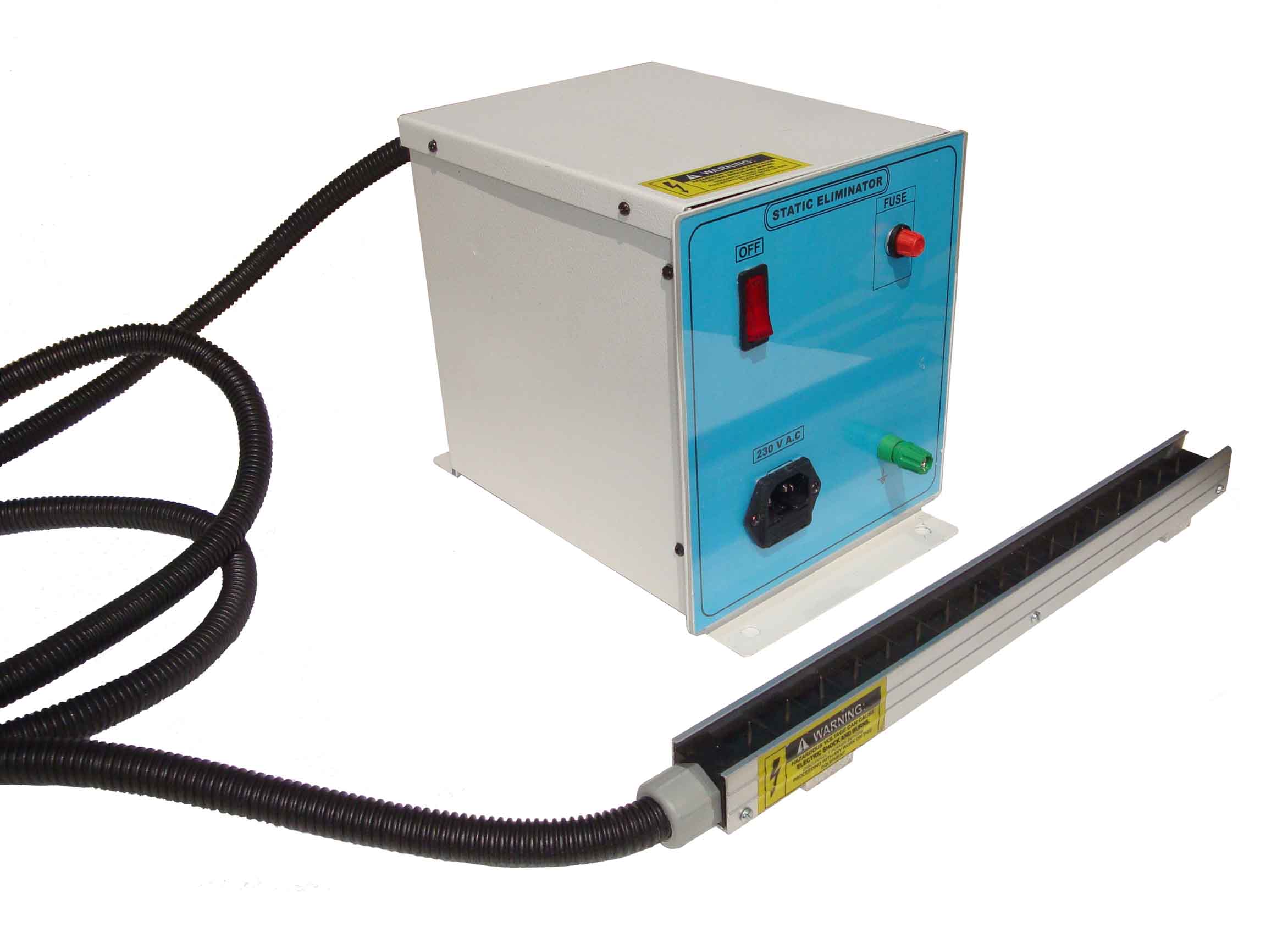

Bar Type Static Eliminator Z2077
Bar Type Static Eliminator Z2077
The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and processes. The discharge bars and power supply are used primarily in cases where disruptive static charges on fast moving material webs impair production processes.
This static eliminator works on the principle of high voltage corona discharge to produce the neutralising ions. It is designed for continuous use and the current limited circuitry ensures total safety even if the electrodes are accidentally touched.
Application areas: Plastic film and paper industries, Glass related industries, Textile & silk industries, Pharmaceutical industry, Clean rooms.
Specifications
| HV Power Supply | 170 × 260 × 190 mm, 8.0 kg |
|---|---|
| Input Supply | 3-pin 230V AC 50 Hz, 50 W |
| Output Voltage | 5.5–10 KV AC |
| Output Short-circuit Current | 5 mA |
| Max Load | 10 m of cable including bars |
| Construction | Powder coated MS cabinet, internally shielded |
| Ionizing Bar | Aluminium housing, SS electrodes with 2 m cable |
| Neutralising Distance | 25 mm max from needle tip |
| Warranty | 12 months except switches, connectors |
