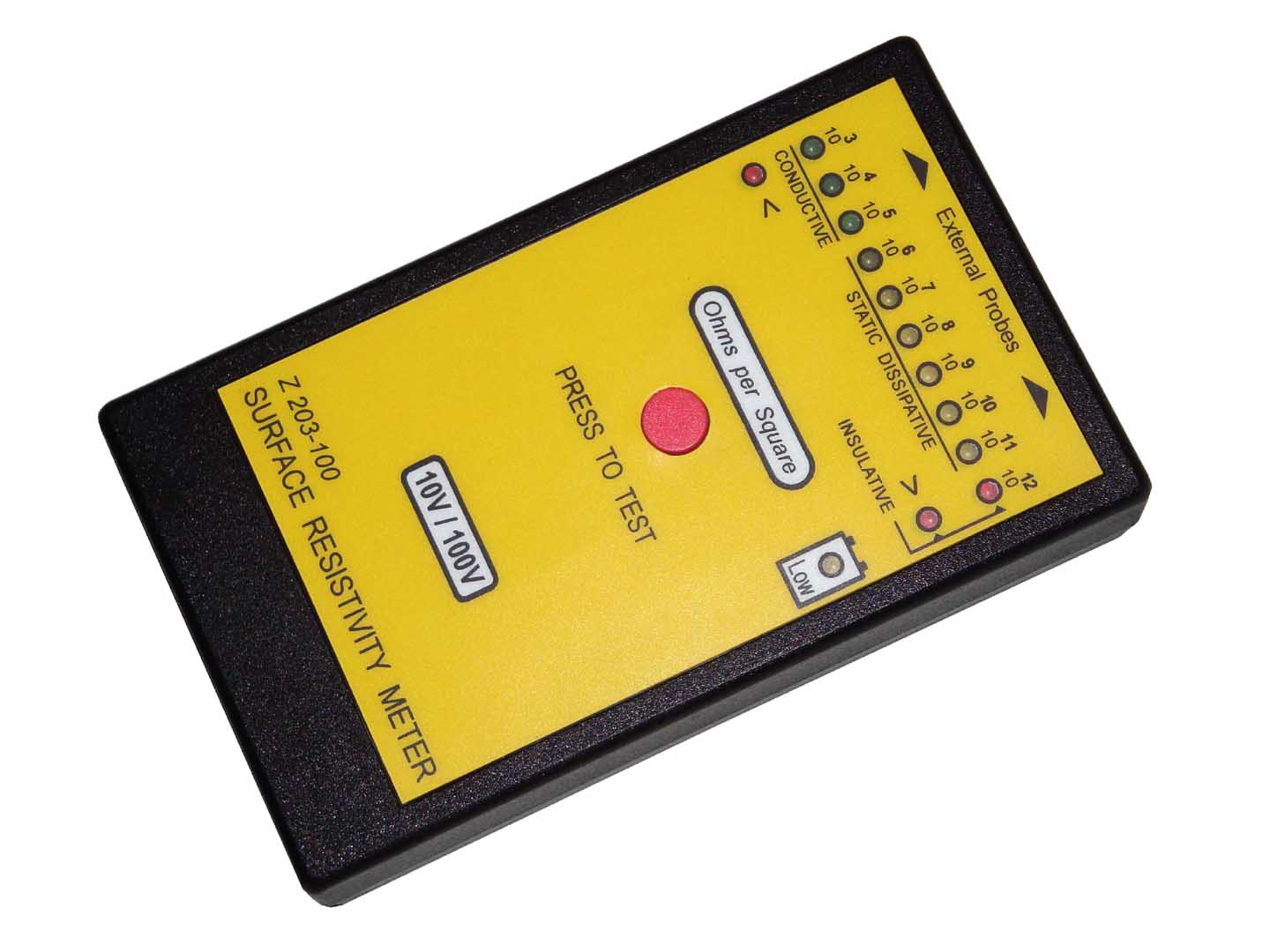

Surface Resistivity Meter Z203-100
Surface Resistivity Meter Z203-100
Surface Resistivity, Resistance between 2 points, and Surface to Ground can all be conveniently measured in accordance with EOS/ESD Association Std S4.1. Measurements in the conductive range (up to 10⁵) are made at 10V and higher values at 100V.

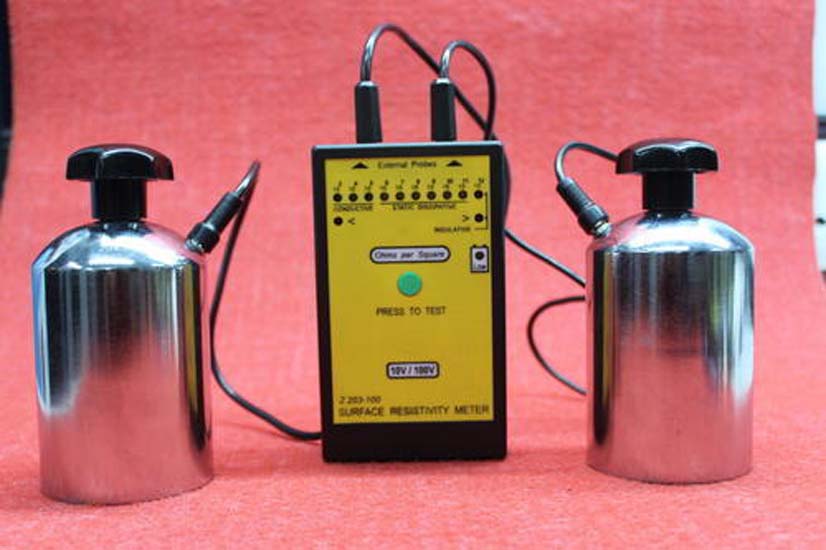

Colour-coded LEDs conveniently indicate conductive, dissipative and insulative values from 10³ to 10¹² Ω/sq with under-range and over-range indications. Measurements can also be made with external probes.
Specifications
| Measurement Range | Auto-ranging 10³ to 10¹² Ω/sq |
|---|---|
| Measurement Accuracy | Half decade |
| Resolution | One decade |
| Excitation Voltage | 10V for < 10⁵; 100V for ≥ 10⁶ |
| Indication | Multi-colour LEDs |
| Power Supply | 9V DC battery |
| Low Battery | Warning at 7.5V |
| Dimensions | 125 × 75 × 29 mm |
| Weight | 160 g |
| Accessories | Surface-to-Ground Cord & Carrying case |
| Optional | External measuring probes |
| Calibration | Recommended every 12 months |
| Warranty | 12 months except switches, connectors |
| Conformance | ESD/EOS S4.1 |
