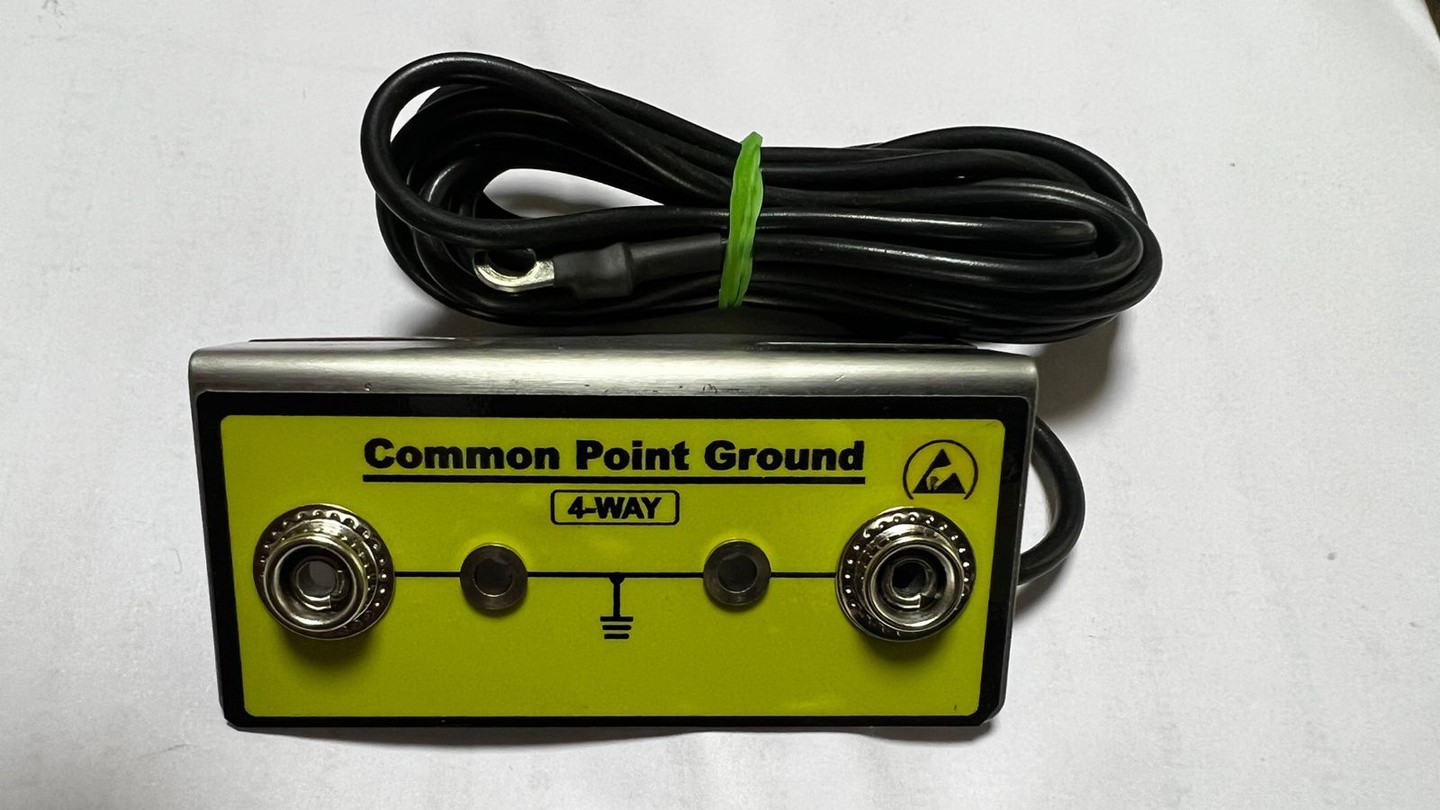

Common Ground Point 4-Way Z114
Common Ground Point 4-Way Z114
As per ANSI/ESD S20.20, all conductors including Personnel must be electrically connected and attached to a known ground. This convenient device provides the means to ground anti-static wrist straps at your work station.
The bracket is fixed (with just 2 screws) to the bottom front edge of your work table or bench. 2 banana sockets & 2 male snaps allow for grounding up to 4 wrist straps.
Specifications
| Dimensions | Front face 80 × 36 mm |
|---|---|
| Weight | 80 g |
| Construction | Stainless Steel with 2 × 4 mm sockets & 2 male snaps |
| Fixing | 2 screws |
| Grounding Cord | 2 m with lug |
