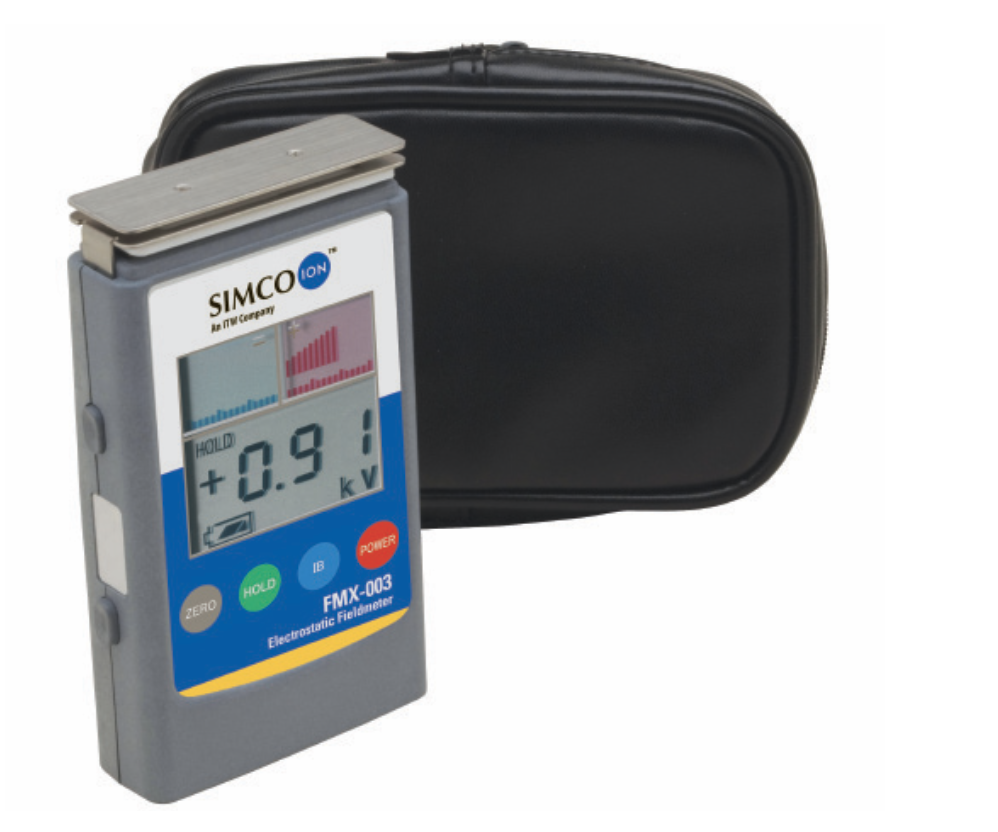

FMX-003 Static Charge Meter 22KV
FMX-003 Static Charge Meter 22KV
The FMX-003 is a handheld static charge meter capable of measuring electrostatic charge up to ±22 kV. Designed for quick ESD audits, workstation checks, and production-line monitoring, it offers a clear display, rapid response, and simple operation for technicians and QA personnel.
Specifications
| Display Features | Push button POWER, HOLD, ZERO and Ion Balance operation |
|---|---|
| Readout | Bar graph - red LCD for positive polarity voltage; blue LCD for negative polarity voltage. Battery capacity and error display indicators |
| Measurement Capability | Measuring range: 0 to ±1.49 kV (low range); 1.0 kV to ±22.0 kV (high range); 0 to ±220 V (ion balance measuring range) |
| Measuring Distance | 1" ± 1/64" (25 mm ± 0.5 mm); LEDs guide for correct distance |
| Response Time | Display updates less than 5 times per second |
| Accuracy | 20 kV ± 10% |
| Alarm Features | Beep sound will be heard during power on, power on with Auto off, power off and over range |
| Power | 9 V, 6F22Y manganese battery |
| Size | 4 7/8" (123 mm) L × 2 7/8" (73 mm) W × 1" (25 mm) D |
| Weight | 6 oz. (170 g) |
