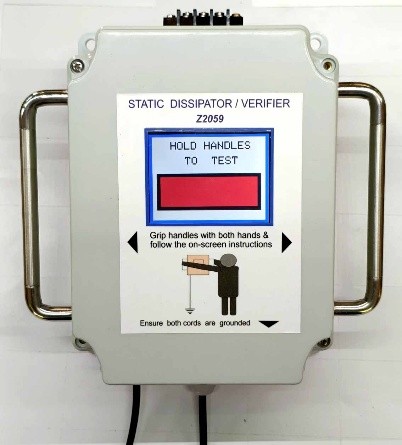

Static Dissipator & Verifier Z2059 (LCD Display)
Static Dissipator & Verifier Z2059 (LCD Display)
This is an advanced version of our popular Body Static Dissipator model Z2058. It is designed to safely drain away any electrostatic charge which may be present on a Human body before entering a Static Sensitive or Hazardous area.
All operating instructions and test results are shown on the colour LCD display. Fix or hang the unit on the wall at any convenient location. The ABS body is IP65 rated, making it suitable for use in many hazardous areas.
Ground the device to a suitable ground point and follow the instructions on the colour LCD display to safely neutralise any static charges. PASS indication is with Sound. Includes a potential-free relay output for access control — door release on PASS, with user-settable access time.
Specifications
| Enclosure | ABS plastic |
|---|---|
| Ingress Protection | IP65 |
| Dimensions | 220 × 220 × 80 mm |
| Weight | 800 g |
| Mounting | Wall mounting |
| Test Grips | Stainless Steel handles |
| Ground Cords | 2 m long |
| Access Control | Potential-free relay output |
| Access Time | 3 sec or 8 sec – user settable |
| Power Supply | 230 V AC mains |
| Decay Time | < 4 secs |
| Resistance to Ground | 10⁵ Ω for safety |
| Warranty | 12 months (except display) |
