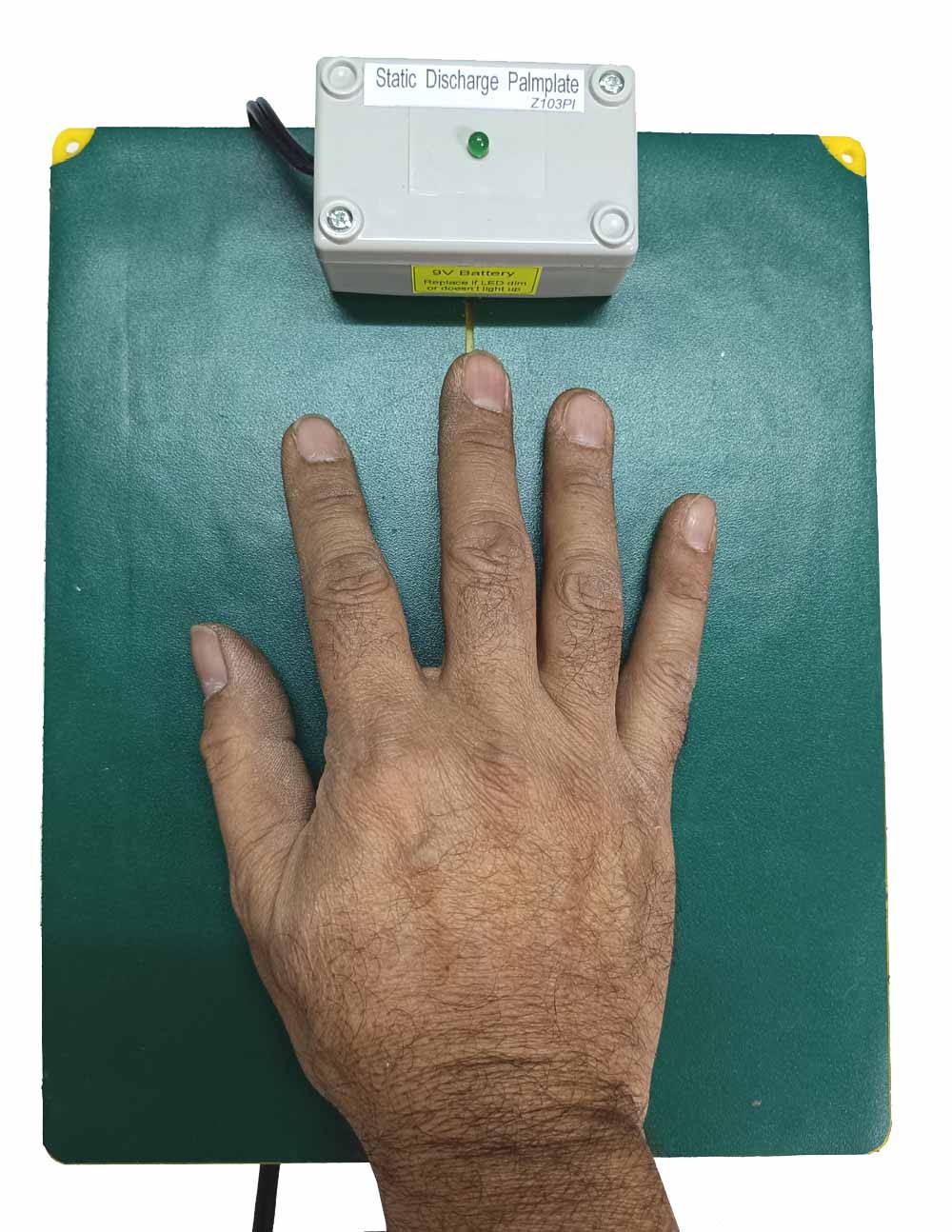

Static Discharge Palmplate Z103PI (with LED Indicator)
Static Discharge Palmplate Z103PI (with LED Indicator)
This device is designed to safely drain away any static charges which may be present on a Human body before entering an ESD safe area. It also has confirmation by Green LED.
Fix or hang the plate on the wall at any convenient location. Ground the device to a suitable ESD ground point and touch the rubber surface for at least 4 seconds to safely neutralise any static charges. Proper discharge is indicated by the Green LED.
Specifications
| Material | Static Dissipative Rubber touch pad on Acrylic backing |
|---|---|
| Dimensions | 260 × 210 mm |
| Weight | 550 g |
| Power Supply | 9V battery |
| Decay Time | < 4 secs |
| Resistance to Ground | 10⁸ Ω/sq for safety |
| Conformance | ANSI/ESD S20.20 |
