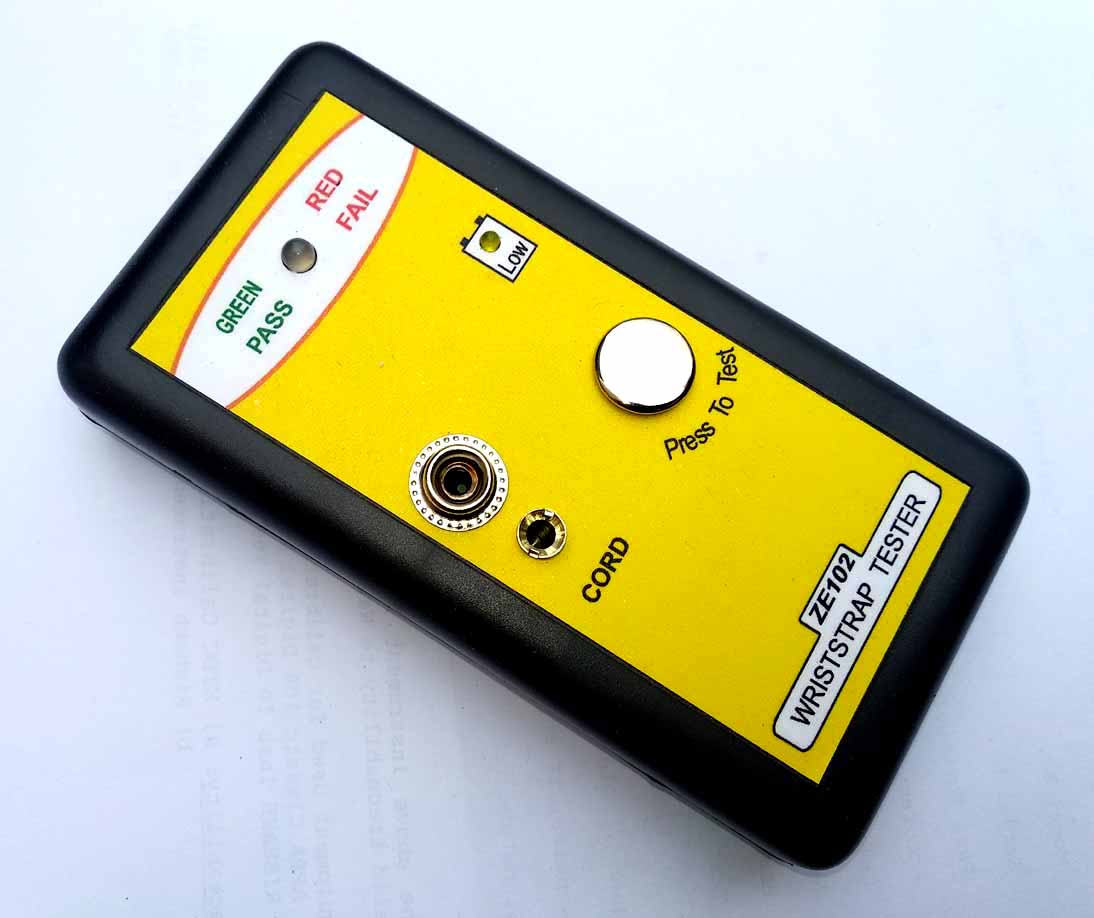

Wriststrap Tester ZE102
Wriststrap Tester ZE102
Wrist Straps are the first line of defence against electrostatic charge build up on the human body. Designed for fast, frequent testing of ESD wrist straps. Very simple to operate — Green light signals OK; Red light and audible indicator means resistance is too low or too high.
Optional Wall Station available to hold the instrument.
Specifications
| Pass Band | 0.75 MΩ to 10 MΩ |
|---|---|
| Indications | Pass — Green LED; Fail — Red LED. Audible Alarm |
| Accuracy | ±10% |
| Power Supply | 9V battery |
| Dimensions | 135 × 70 × 25 mm |
| Weight | 100 g |
| Calibration | Recommended every 12 months |
| Warranty | 1 year except switches, connectors |
| Conformance | EN 100 015 |
