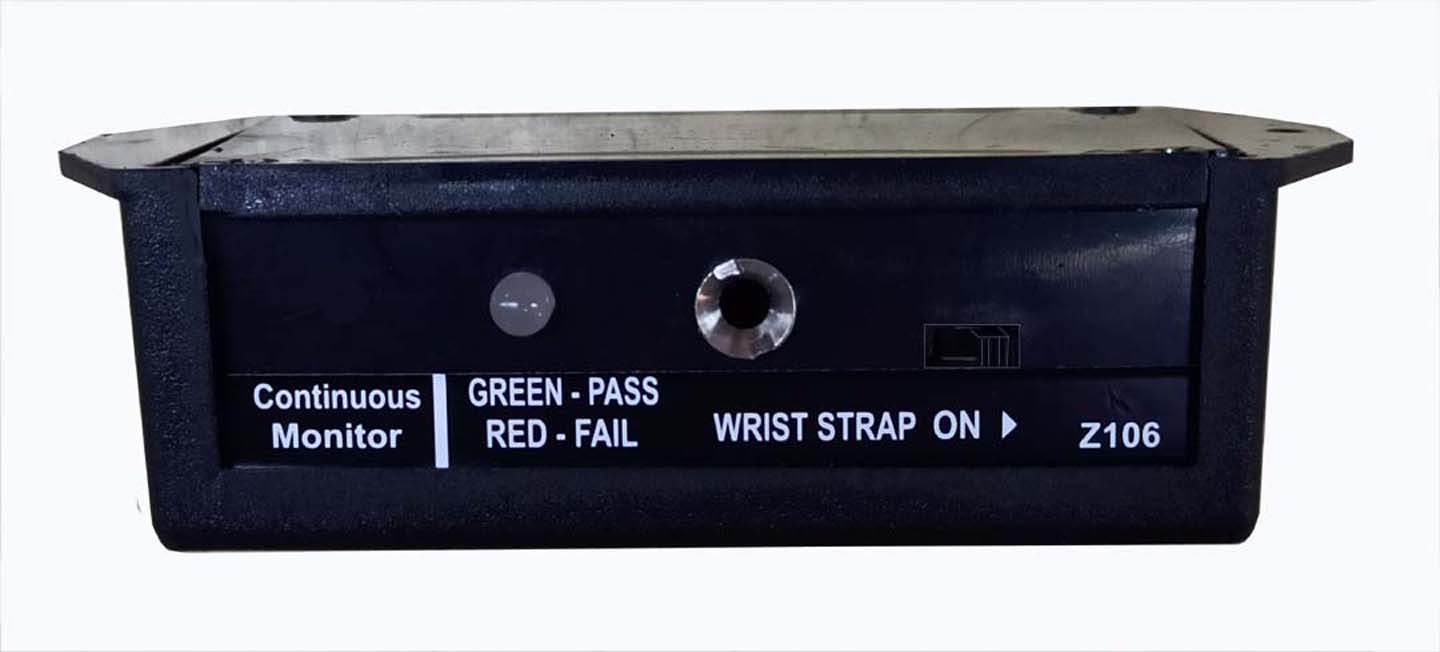

Continuous Wriststrap Monitor Z106
Continuous Wriststrap Monitor Z106
Wrist Straps are the first line of defence against electrostatic charge build-up on the human body. This instrument continuously monitors the wriststrap to detect loss of continuity between operator and monitor and/or proper grounding.
Broken coil cords and improper contact with the skin are detected instantly to alert the operator. Continuous monitoring reduces the need for periodic checks and audits and ensures greater security.
Specifications
| Dimensions | 110 × 60 × 32 mm |
|---|---|
| Weight | 75 g |
| Monitoring | By capacitive method |
| Trigger Point | Virtual resistance to ground > 4 MΩ |
| Fault Warning | Both audio & visual |
| Indications | 5 mm Dual LED + Audible Alarm |
| Power | DC 6V 100 mA adaptor |
| Calibration | Recommended every 12 months |
| Warranty | 1 year except switches, connectors |
| Conformance | BS EN 100015–1 |
