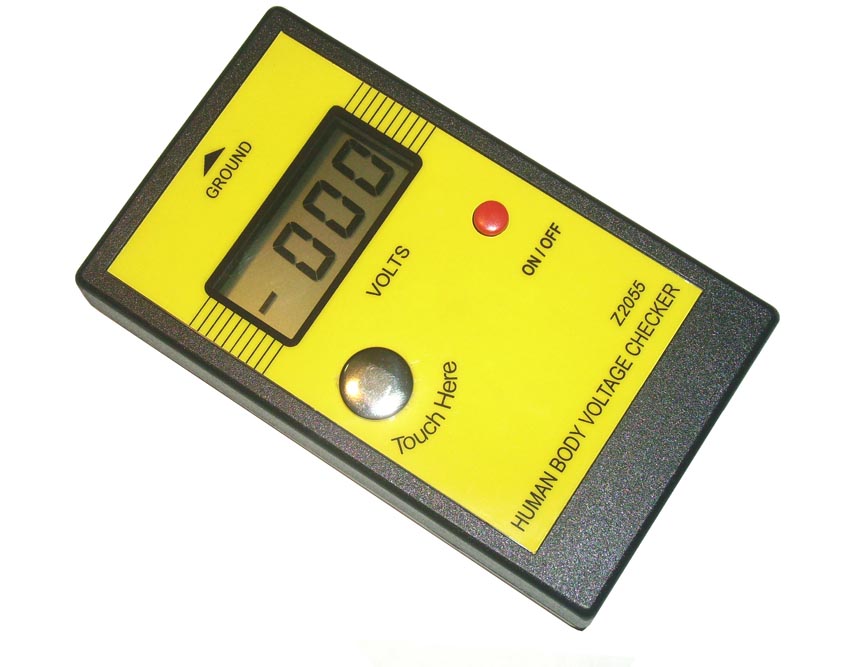

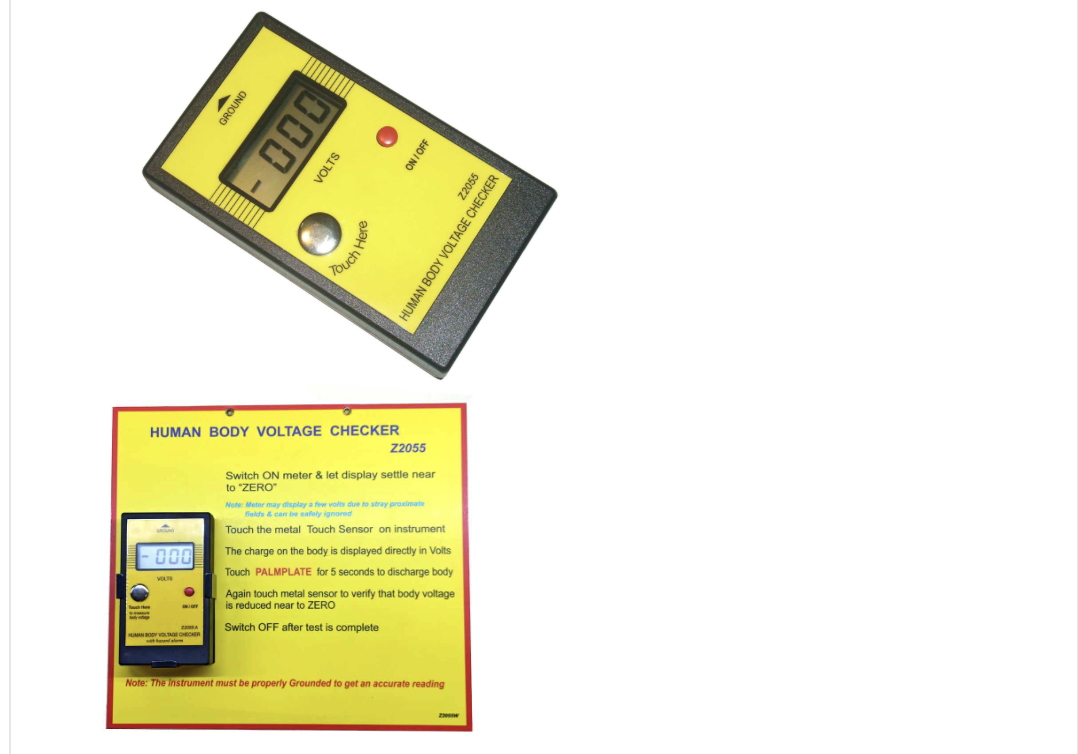

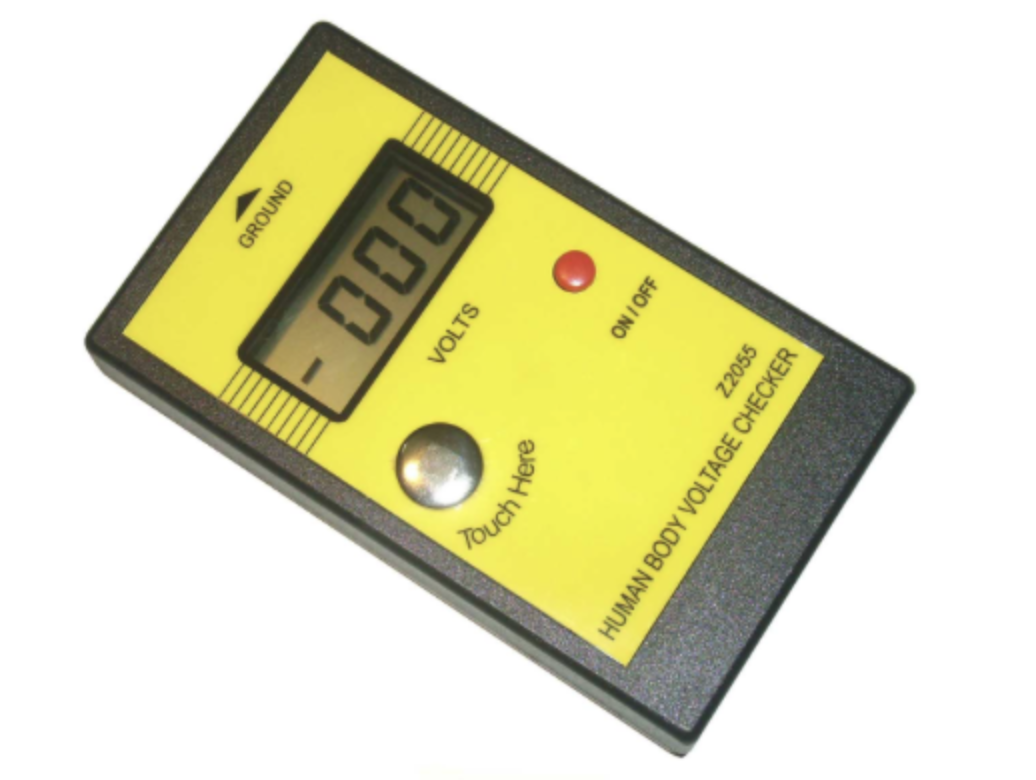

Human Body Voltage Checker Z2055
Human Body Voltage Checker Z2055
This instrument is designed to measure the Static Voltages carried on a human body. It is a good auditing tool to verify whether Personnel entering an ESD safe area are carrying any hazardous charges on themselves.

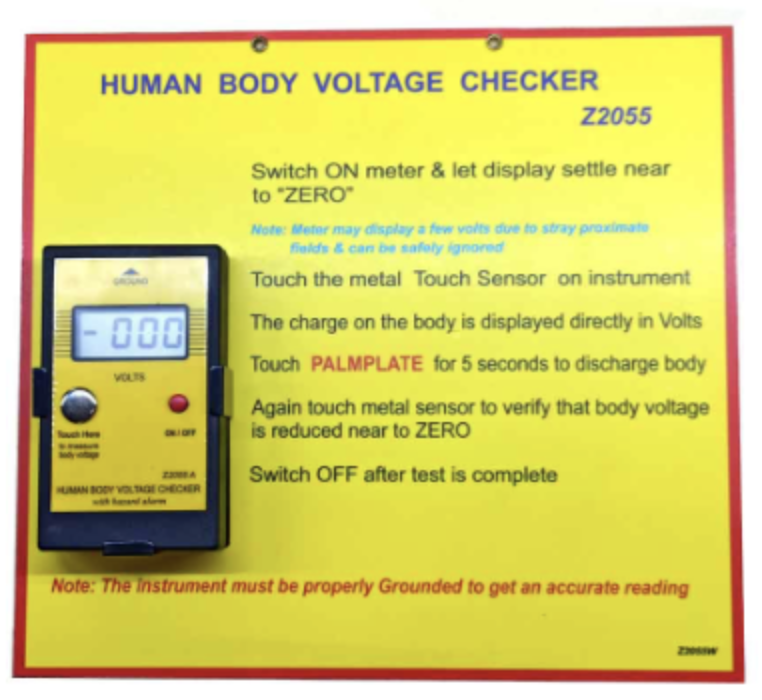

Touch the Button on the instrument and directly read the charge level on the display. The Z2055A version gives a hazard warning if Voltage detected exceeds 100V.
Note: Display of a few volts even when not touching the sensor is normal and may be due to some charge present in the air or on the instrument body.
Specifications
| Dimensions | 125 × 75 × 29 mm |
|---|---|
| Weight | 125 g |
| Indicating Range | 0 to ±2000 V |
| Warning (Z2055A) | Audio alarm if voltage exceeds 100V |
| Display | 3.5 digit LCD with polarity indication |
| Accuracy | ±15% |
| Power Supply | 9V battery |
| Low Battery | Warning at < 7.5V on display |
| Accessories | Grounding Cord |
| Calibration | Recommended every 12 months |
| Warranty | 1 year except switches, connectors |
