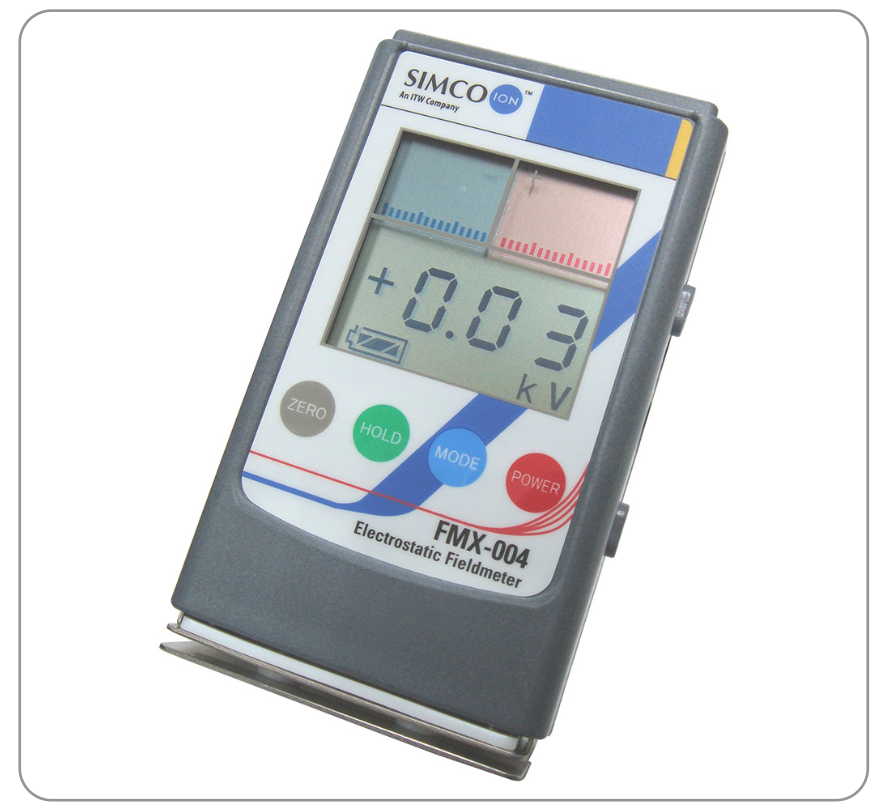

FMX-004 Static Meter 30KV
FMX-004 Static Meter 30KV
The FMX-004 is a handheld static meter capable of measuring electrostatic charge up to ±30 kV. Built for demanding ESD programs, it delivers fast response, strong accuracy and a rugged portable form factor for field and production use.
Specifications
| Battery | 9 V alkaline battery, approximately 30 hours |
|---|---|
| Power | Turns off automatically after 5 minutes |
| Balance | 0 to ±300 V with Ion Balance Plate |
| Range | 0 to ±1.49 kV (low); ±1.0 kV to ±30 kV (high) |
| Bar Graph | (Auto) ±0.1 kV (low), ±3 kV (high), ±300 V ion balance |
| Distance | 1" ± 0.2" (2.54 cm ± 0.5 mm); LED guide for correct distance between charged object and Fieldmeter |
| Accuracy | ±10% |
| Response | Less than 1 second |
| Display | Red for positive polarity, blue for negative polarity. Auto-ranging: 3 digits x.xx = 0 to ±1.49 kV; xx.x = ±1.0 kV to ±30.0 kV (Hi); x = 0 to ±300 V (Ion Balance). [HOLD] retains the display after a measurement; [A.OF] auto power-off function deactivated; [Err] error sign if sensor is damaged; battery condition display (4 stages) |
| Renewal Rate | 5 times per second |
| Alarm | 1 beep: POWER ON; depress power button >3 seconds: 3 beeps, POWER ON with AUTO OFF disabled; short beeps at 1-second intervals 5 seconds before automatic power-off; continuous beep sound for OVER RANGE |
| Operating Environment | 50–100°F (10–40°C); 0–60% RH, non-condensing |
| Enclosure | Conductive resin (ABS) |
| Dimension | 4.8" L × 2.9" W × 1.0" D (12.3 × 7.3 × 2.5 cm) with Ion Balance Plate |
| Weight | 0.38 lb (0.17 kg) with battery and Ion Balance Plate |
| Warranty | Two-year limited warranty |
