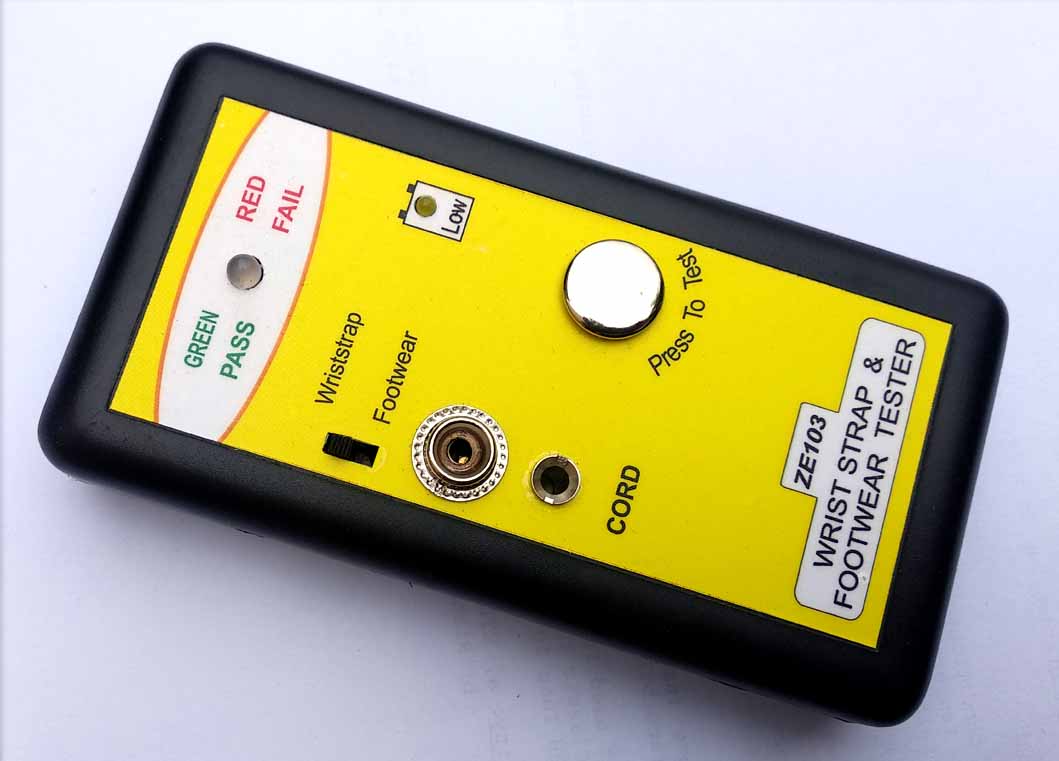

Wriststrap & Footwear Tester ZE103 Complete Set
Wriststrap & Footwear Tester ZE103 Complete Set
Wrist Straps and ESD Footwear are the first line of defence against electrostatic charge build up on the human body. This instrument is designed for fast, frequent testing of ESD wrist straps and Footwear.

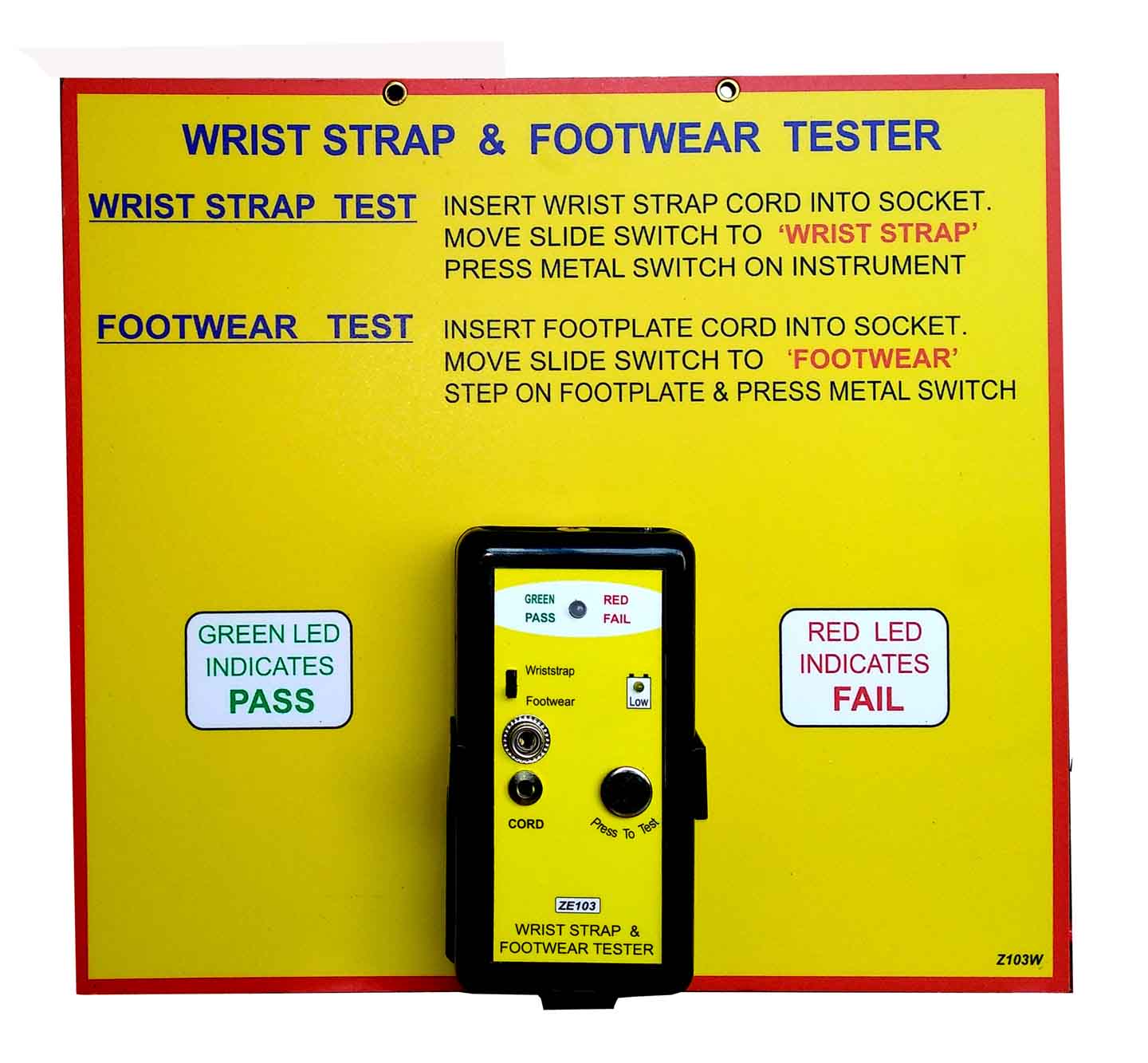

Very simple to operate — Green light signals OK; Red light and audible indicator means resistance is too low or too high. Optional Wall Station Z103W available. System is designed to check Wriststraps & ESD footwear only.
Specifications
| Application | To check Wriststraps & ESD footwear only |
|---|---|
| Pass Range (Wrist Strap) | 0.75 to 10.0 MΩ |
| Pass Range (Footwear) | 0.75 to 35.0 MΩ |
| Indications | Pass — Green LED; Fail — Red LED; Audible Alarm |
| Accuracy | ±10% |
| Power Supply | 9V DC battery |
| Low Battery | Warning < 7V |
| Dimensions | 135 × 70 × 25 mm |
| Weight | 150 g |
| Calibration | Recommended every 12 months |
| Warranty | 12 months except switches, connectors |
| Conformance | EN 100 015 |
