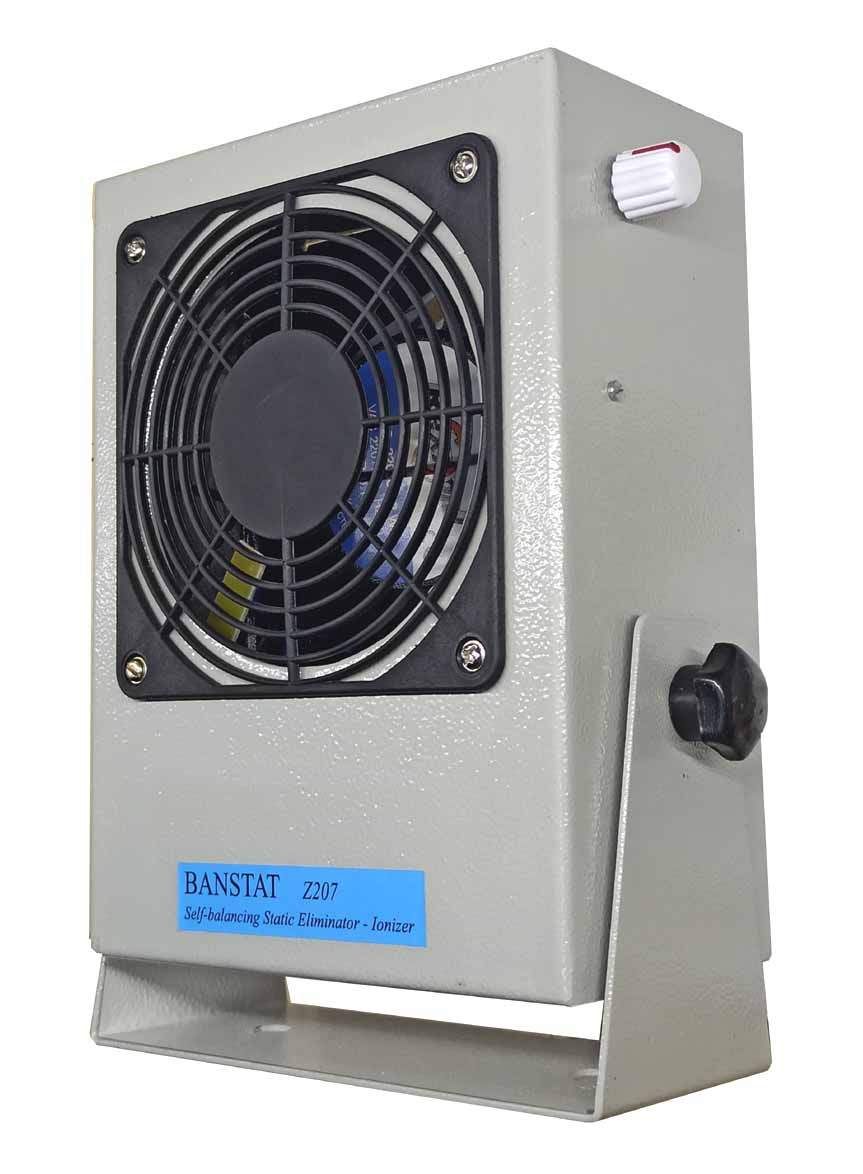

Static Eliminator (Ionizer) Z207
Static Eliminator (Ionizer) Z207
This Bench Top device is designed to neutralise electrostatic charges near your ESD work-station or ESD protected area with a stream of ionized air. It does what Wrist straps and Conductive mats cannot do — remove static charges from non-conductive objects and surfaces.
Application areas: Anti-static work stations and assembly units, Plastic film and paper industries, Plastic manufacturing and moulding units, Pharmaceutical industry, Clean rooms.
Specifications
| Air Flow | 80 cfm max, fan speed adjustable |
|---|---|
| Noise Level | 50 dBA at 1 m |
| Supply | 230V AC 50 Hz, 25 W |
| Ionization Voltage | 4 KV |
| Ion Balance | within ±35V as per Standard |
| Discharge Time | ±1000V to 100V in < 2 secs at 300 mm |
| Ozone | < 0.01 ppm |
| Construction | Powder coated ESD-safe MS cabinet |
| Dimensions | 220 × 190 × 80 mm |
| Weight | 3.00 kg |
| Calibration | Recommended every 12 months |
| Warranty | 1 year except switches, connectors |
| Conformance | ANSI/ESD STM 3.1 |
